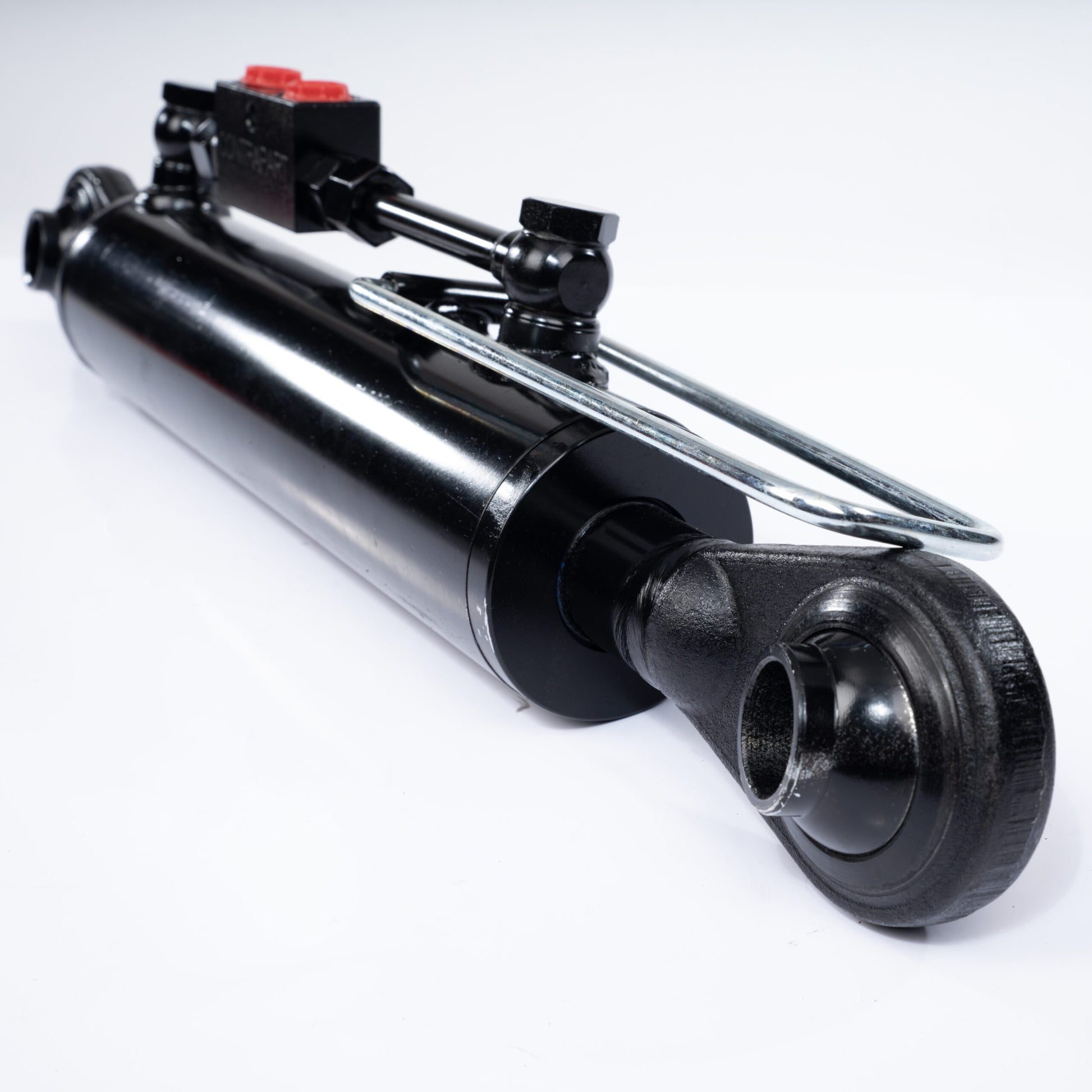

Hydraulic top link Cat 2 with two hoses with quick couplers, banjo bolts and sealing washers
Hydraulic top link Cat 2 with two hoses with quick couplers, banjo bolts and sealing washers
Hydraulic top link Cat 2-2 (550–830 mm) including 2 hoses – SPH320037

Hydraulic top link Cat 2-2 (550–830 mm) including 2 hoses – SPH320037

SKU :  SPH320037
€144,99
€119,83 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

This Cat 2 hydraulic top link replaces the mechanical top link on your tractor. Adjust its length using the tractor hydraulics to change the implement's working angle from the tractor seat. It has a 550–830 mm length range, 280 mm stroke and 50/30 mm cylinder bore/piston rod. Supplied with 2 hoses with quick couplings, 2 banjo bolts and 4 sealing washers.

CAT 2-2 · 550–830 MM · 50/30 MM

Check the fit before ordering. Compare the required length, both mounting points and available clearance with the technical drawing. Category or tractor make alone does not confirm a suitable fit.

Mounting holes: Ø25.4 mm; end widths: 51 mm and 51 mm.

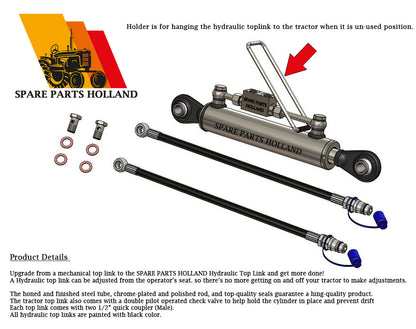

What is included?

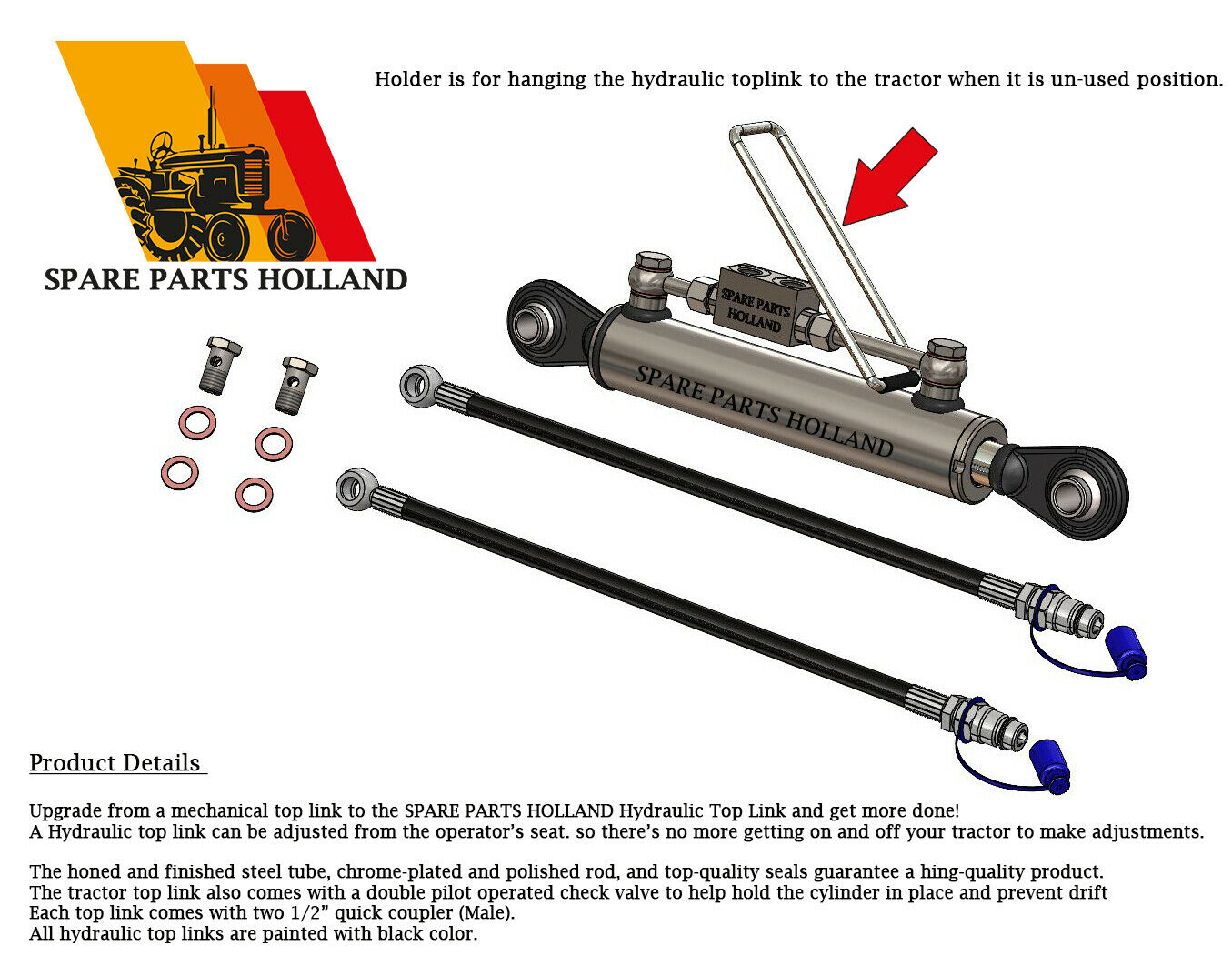

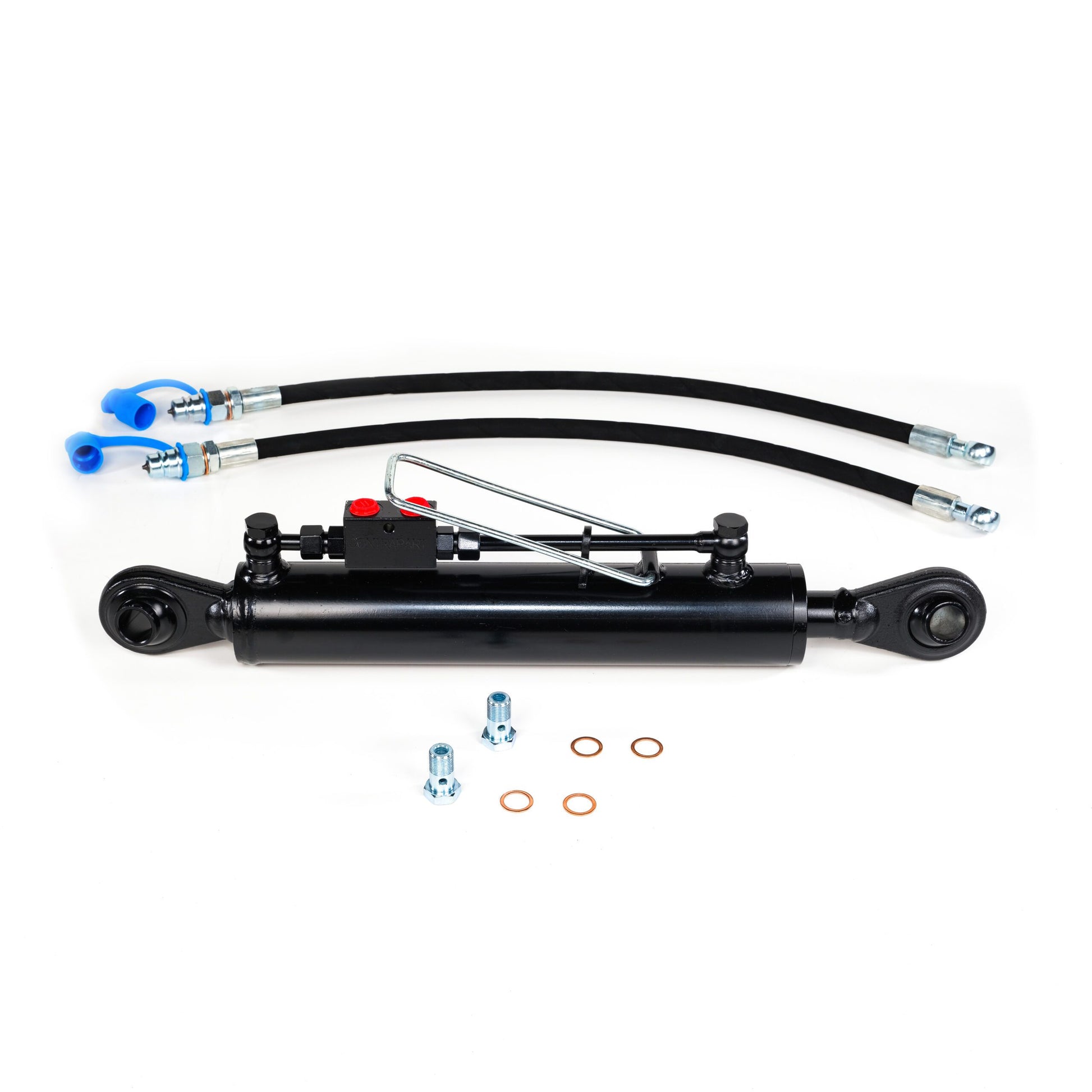

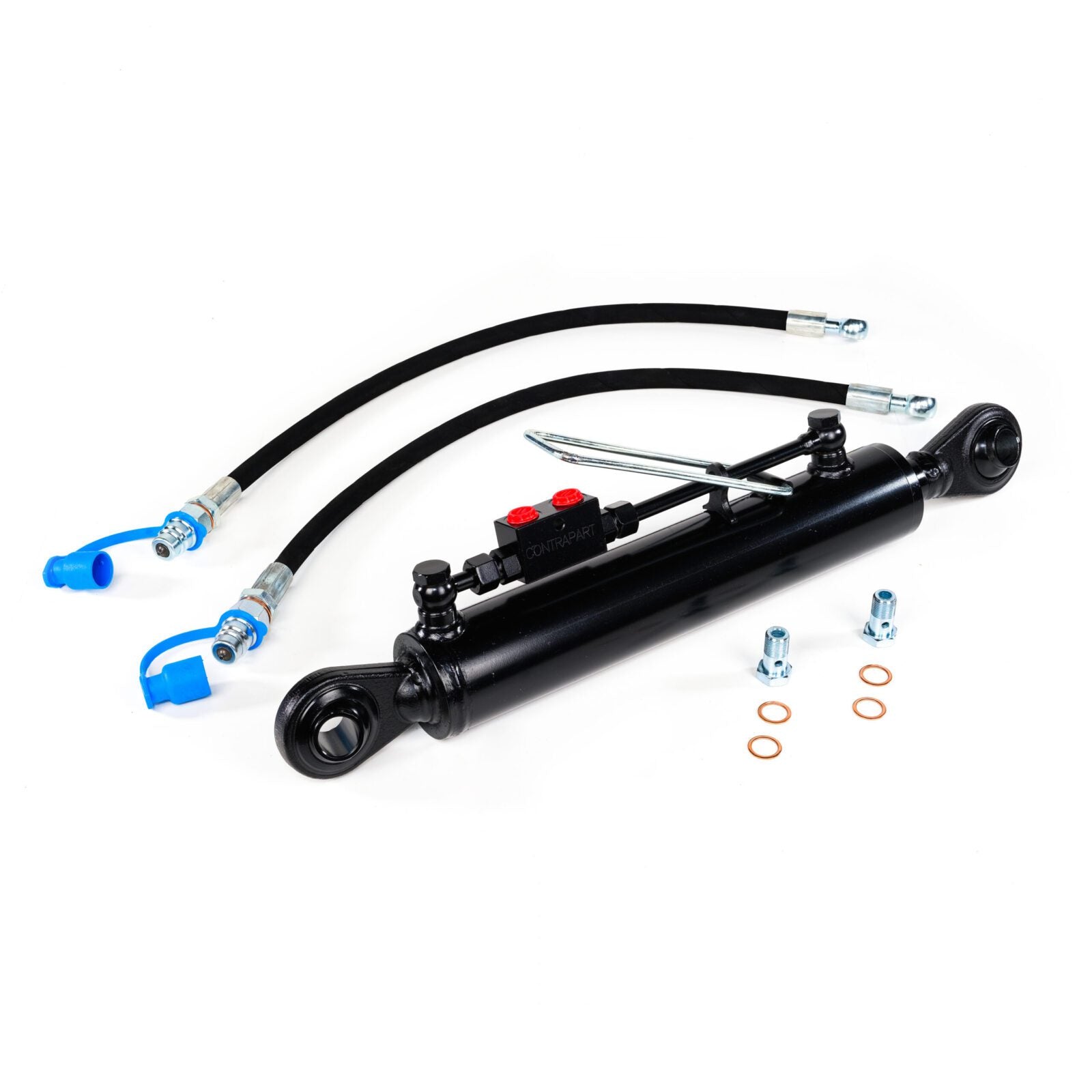

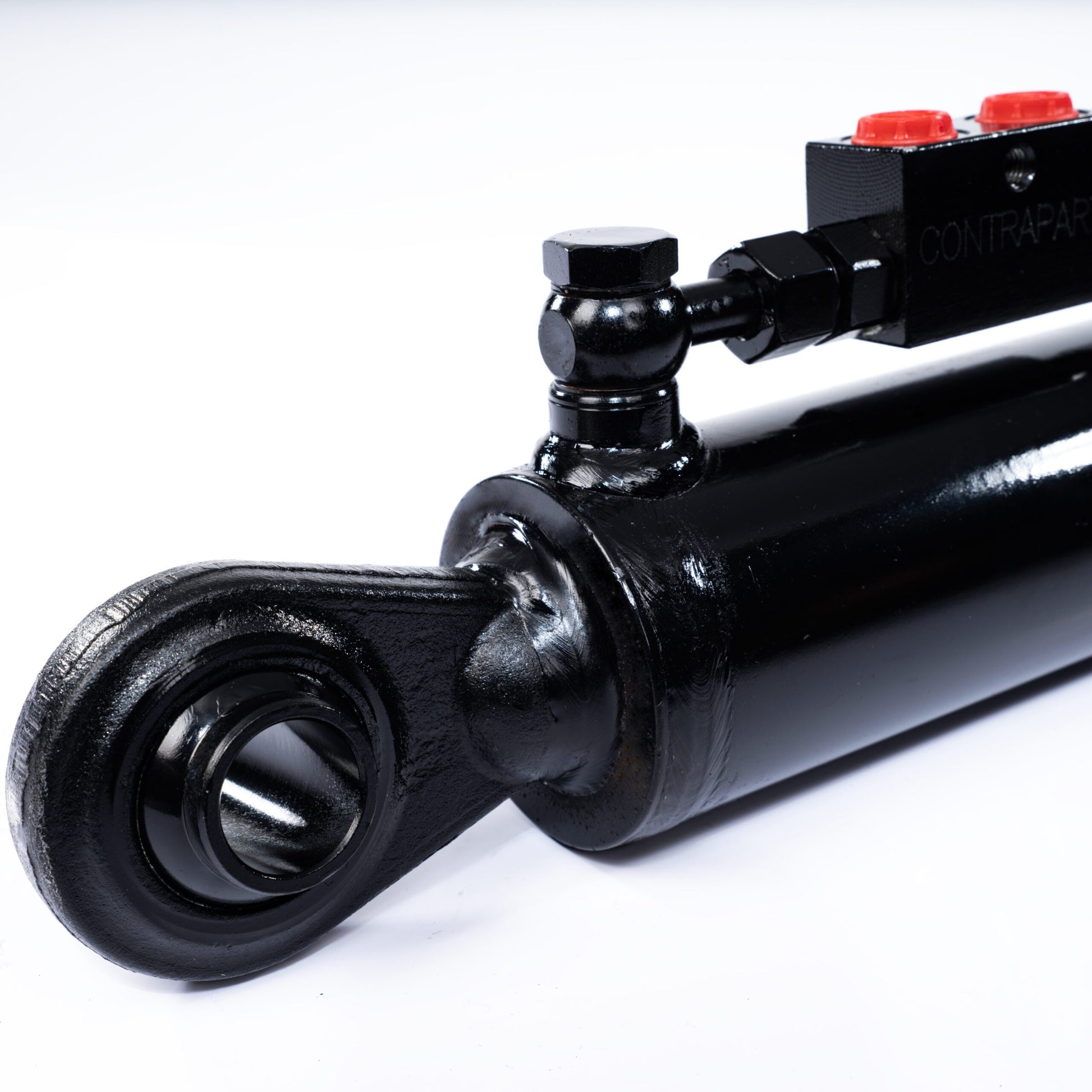

  • 1 × hydraulic top link with hydraulic locking block
  • 2 × hydraulic hoses with quick couplings
  • 2 × banjo bolts
  • 4 × sealing washers for the banjo connections

The hydraulic locking block is the valve block on top of the cylinder. Check that the quick couplings match your tractor and that the hoses have sufficient clearance throughout movement.

Will this version fit your tractor?

Both ends have ball joints for a suitable Cat 2 three-point linkage. A double-acting hydraulic connection is required to extend and retract the cylinder. The 50/30 designation means a 50 mm cylinder bore and a 30 mm piston rod, not the mounting-hole diameter.

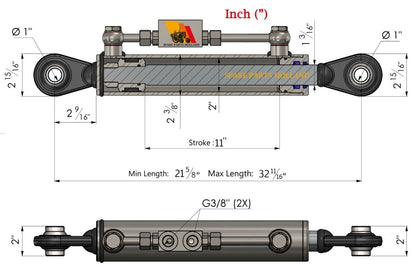

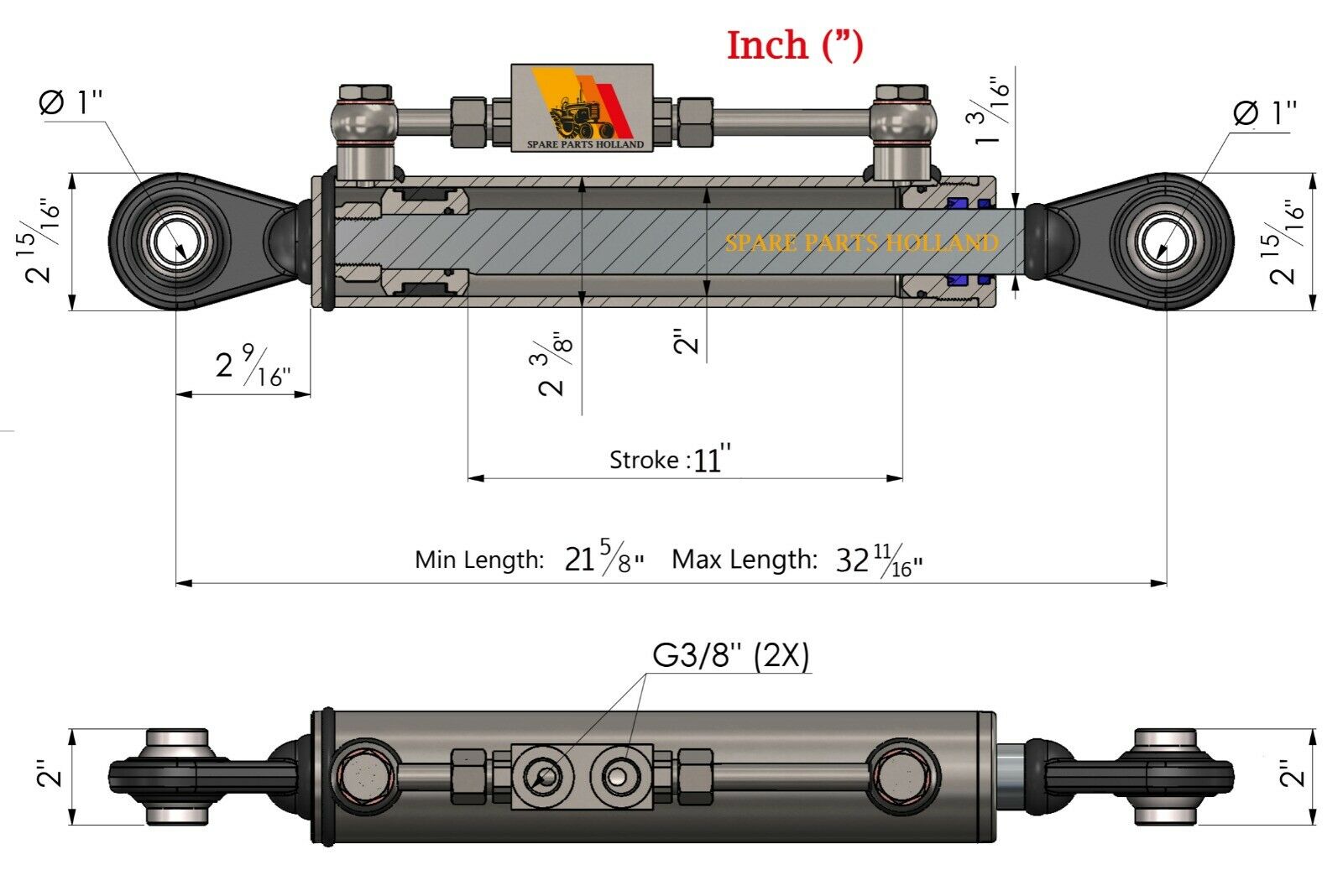

Technical specifications

Part numberSPH320037
End-fitting categoryCat 2-2
End fittingsBall joints at both ends
Retracted length¹550 mm
Extended length¹830 mm
Stroke280 mm
Bore / piston rod50 / 30 mm
Hole diameter at each ball jointØ25.4 mm
Width at cylinder end51 mm
Width at piston rod end51 mm
Cylinder ports shown on drawingG3/8″ (2×)

¹ Length between the centres of the mounting holes, as shown on the metric drawing. A drawing's hole diameter is not automatically the nominal pin size.

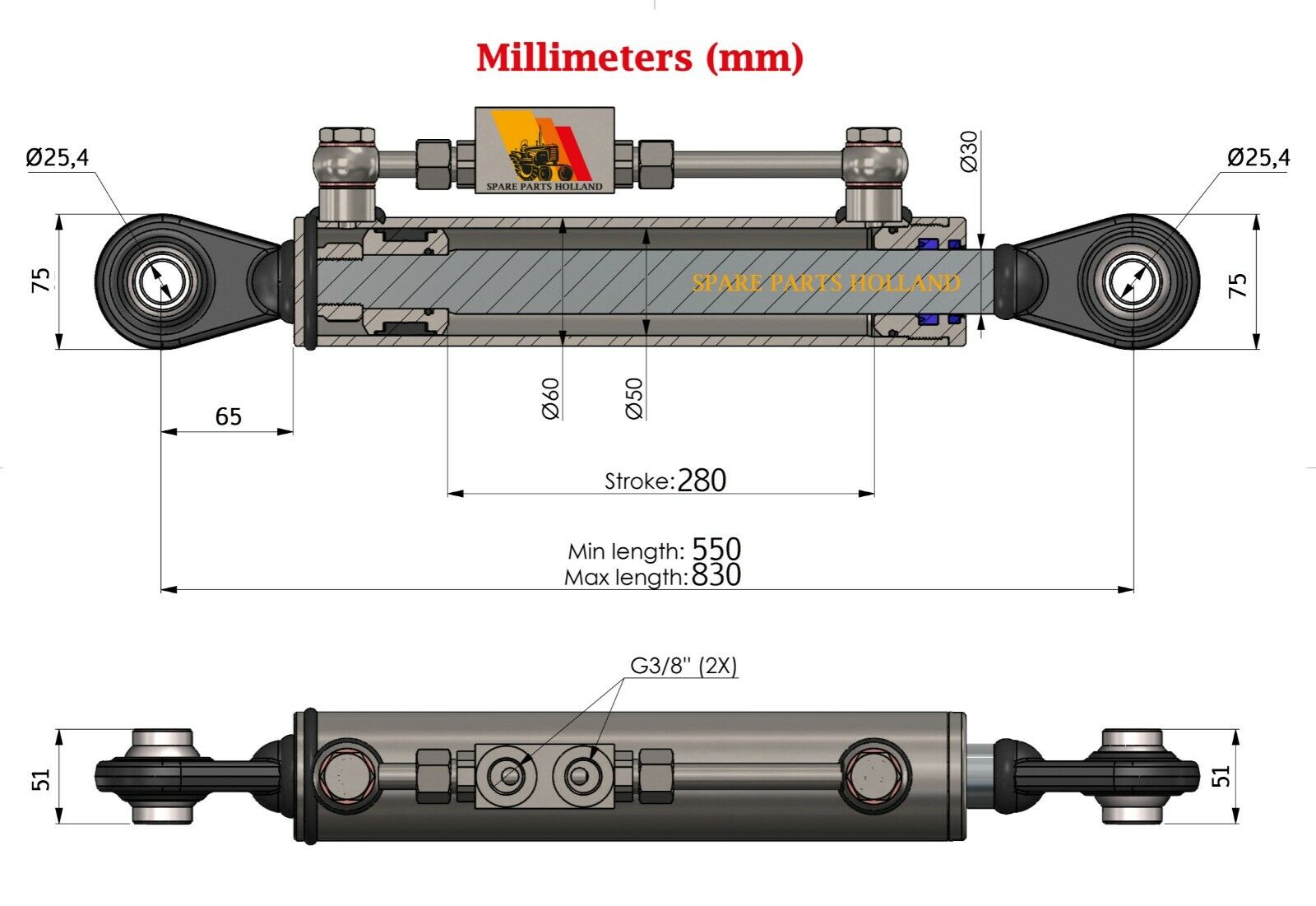

View the metric technical drawing

Checks before installation

  1. Compare the required retracted and extended lengths with 550–830 mm.
  2. Check both mounting pins, hole diameters, joint widths and available clearance.
  3. Check double-acting control and tractor quick couplings. G3/8″ is the cylinder port size, not the tractor quick-coupling specification.
  4. Route the hoses without kinks, tension or contact with moving parts.

Need a different length or a hook end?

Compare the other 50/30 versions: 430–590 mm · 160 mm stroke; 480–690 mm · 210 mm stroke; 670–1070 mm · 400 mm stroke.

Compare standard Cat 2 hydraulic top links or Cat 2 hydraulic top links with hook. Check each version's mounting dimensions separately.

Frequently asked questions

Does it fit every Cat 2 tractor?

No. Check the length range, both mounting points, available clearance and hydraulic connections.

How do I measure the required top-link length?

Measure between the centres of the two mounting holes. Check the shortest and longest lengths needed by your tractor and implement, then compare them with 550–830 mm. Do not measure only the cylinder barrel.

Is the 280 mm stroke the same as the overall length?

No. Stroke is the cylinder's travel. The retracted length is 550 mm and the extended length 830 mm, measured between the indicated mounting points.

Need help choosing?

Send your tractor model, photos of both mounting points and the dimensions of your current top link via WhatsApp. Tell us which implement you use. The product code is already included in the message.

Ask for advice on WhatsApp
