SPH330016 triple-spool 6-way hydraulic remote valve kit for Fiat Someca tractors
SPH330016 triple-spool 6-way hydraulic remote valve kit for Fiat Someca tractors
Triple Hydraulic Remote Valve Kit for Fiat / Someca / White Oliver / Long – 6-Way – SPH330016

Triple Hydraulic Remote Valve Kit for Fiat / Someca / White Oliver / Long – 6-Way – SPH330016

SKU :  SPH330016
€399,00
€329,75 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

Upgrade a compatible Fiat / Someca, White Oliver, Long or Allis-Chalmers tractor with this triple-spool 6-way hydraulic remote valve kit. SPH330016 has three manual levers: lever 1 can operate single-acting or double-acting hydraulic cylinders, while levers 2 and 3 operate double-acting cylinders only.

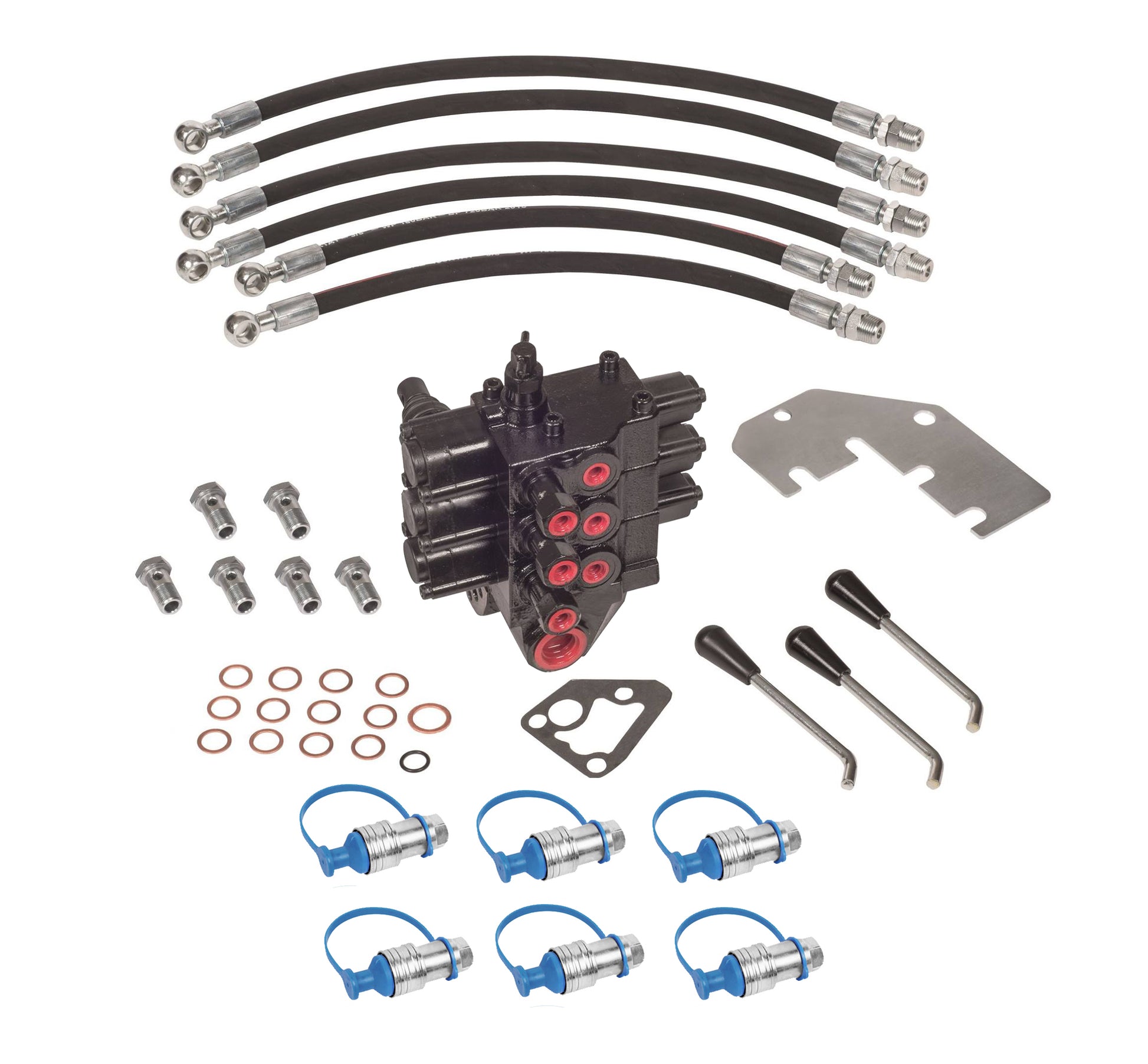

Triple hydraulic remote control valve kit

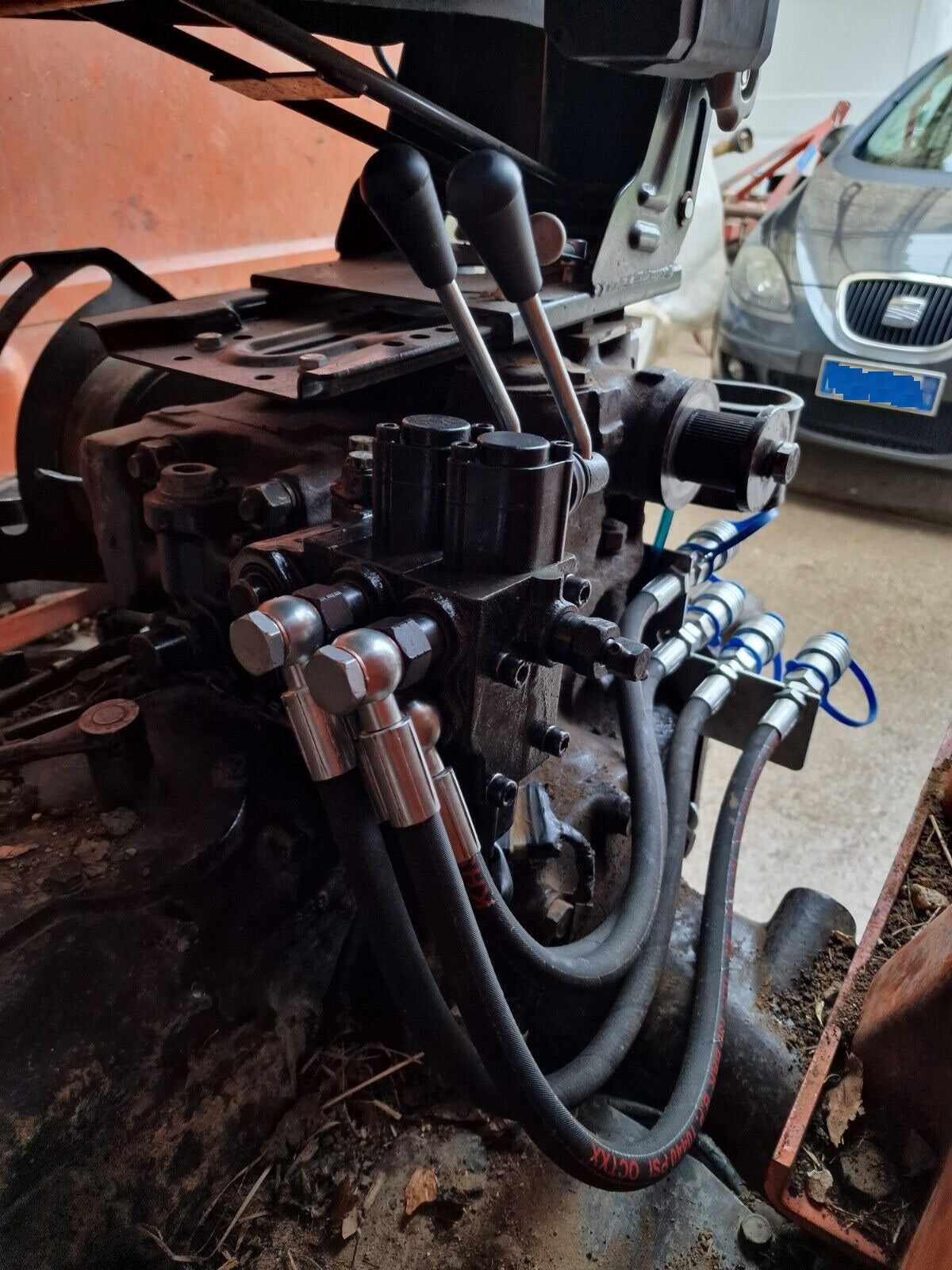

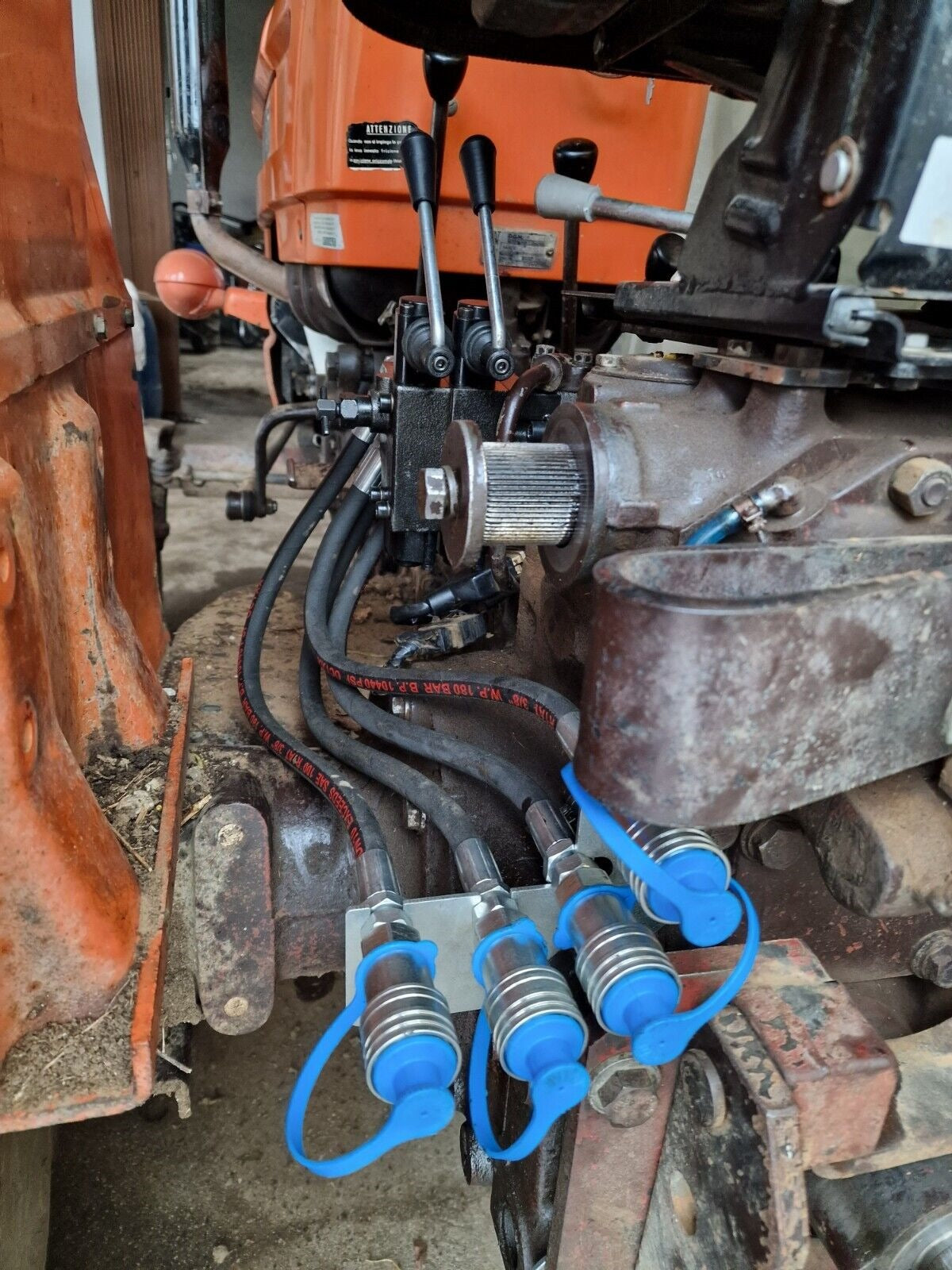

The valve mounts directly on the lift cover under the seat and is supplied with ½” ISO 5675 female quick couplers and the required mounting parts.

Key features

  • Valve configuration: triple spool / 6-way
  • Lever 1: single-acting or double-acting cylinders
  • Levers 2 & 3: double-acting cylinders only
  • Control: three manual levers
  • Quick couplers: ½” ISO 5675 female
  • Mounting: directly on the lift cover under the seat
  • Float position: no
  • Installation: required mounting parts included

Working conditions

Nominal flow 45 L/min (12 US GPM)
Maximum working pressure 315 bar (4600 PSI)
Maximum back pressure 25 bar (360 PSI)
Oil temperature – NBR seals -20 to 80 °C (-4 to 176 °F)
Oil temperature – FPM/Viton seals -20 to 100 °C (-4 to 212 °F)
Oil viscosity – operating range 10 to 75 mm²/s (10 to 75 cSt)
Oil viscosity – min./max. 10 / 400 mm²/s (10 / 400 cSt)
Oil filtration ≤30 µm
Ambient temperature -35 to 60 °C (-31 to 140 °F)
Internal leakage 3 cm³/min at 100 bar, 40 °C, 46 cSt – A(B)→T
Maximum contamination level 19/16 – ISO 4406

OEM / reference numbers

588771, 4998886, 31-2906077, TX11266, 5086678, 672625AS, 72091846.

Compatible Fiat / Someca tractors

55-46, 65-46, 350 Special, 411, 411R, 415, 415DT, 450, 450DT, 451C, 480, 500, 500DT, 540, 550, 580, 600, 640, 650, 670, 680, 750, 780, 880.

Compatible White Oliver tractors

1250, 1250A, 1255, 1265, 1270, 1355, 1365, 1370, 1450, 1465, 1470, 2-50, 2-60.

Compatible Long tractors

2360, 2360DTC, 2460, 2460DTC, 2460SD, 2460SD-DTC, 2510, 2510DTC, 2510SD, 2510SD-DTC, 260C, 2610, 2610DTC, 2610SD, 2610SD-DTC, 310, 310C, 310DT, 350, 360, 360C, 445, 445DT.

Compatible Allis-Chalmers tractors

5040, 5045, 5050.

Compatibility check
The valve may also fit other tractor models. If your model is not listed, contact us before ordering so we can check compatibility.

For more compatible applications, see our hydraulic remote valve kits for Fiat & Someca tractors.

Order SPH330016

Order this triple-spool 6-way hydraulic remote valve kit for compatible Fiat / Someca, White Oliver, Long and Allis-Chalmers tractors.

Fast worldwide delivery from Spare Parts Holland.
