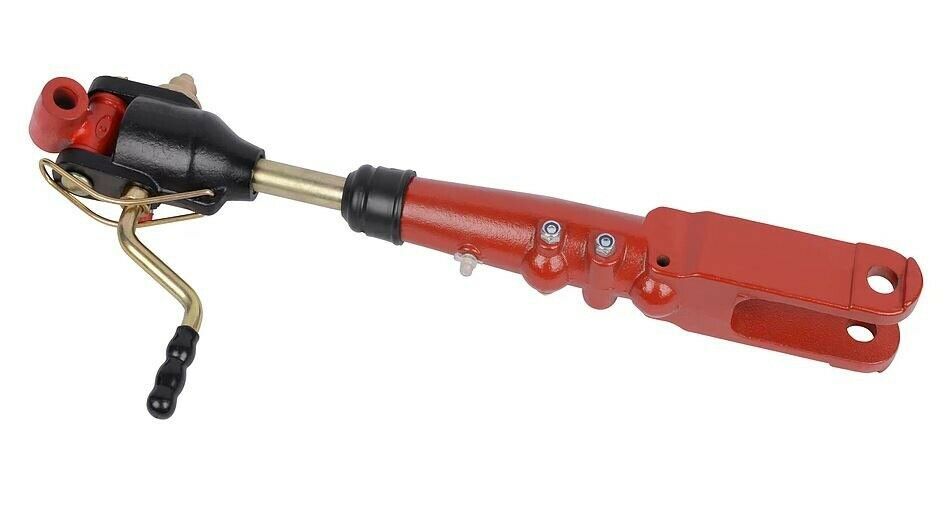

Adjustable Lift Link / Levelling Box S74506 for Case IH / IHC 385 / 454 / 474 / 475 / 484 / 485 / 495 – SPH430726
SKU :
SPH430726
€107,00
€88,43 excl. VAT
€88,43 excl. VAT
2-year warranty on all our products
Worldwide Shipping
1000+ customers give us a 9.4 review
Description
Adjustable lift link / levelling box for selected Case IH / IHC tractors. This aftermarket replacement part is used in the tractor’s three-point linkage and can be compared with reference numbers S.74506, S74506 and 74506.
Before ordering, compare the reference number, tractor model, minimum and maximum length, shaft length, fork distance, pin sizes and shaft thread with the part currently fitted to your tractor.
Adjustable lift link for Case IH / IHC
Suitable for the Case IH / IHC models listed below. Similar-looking lift links can have different dimensions, so always check the reference number and connection dimensions before ordering.
Compatible Case IH / IHC tractor models
300 / 400 Series
385 / 454 / 474 / 475 / 484 / 485 / 495
500 / 600 Series
574 / 584 / 585 / 595 / 674 / 684 / 685 / 695
700 / 800 Series
784 / 785 / 795 / 884 / 885 / 895
Reference numbers
- S.74506
- S74506
- 74506

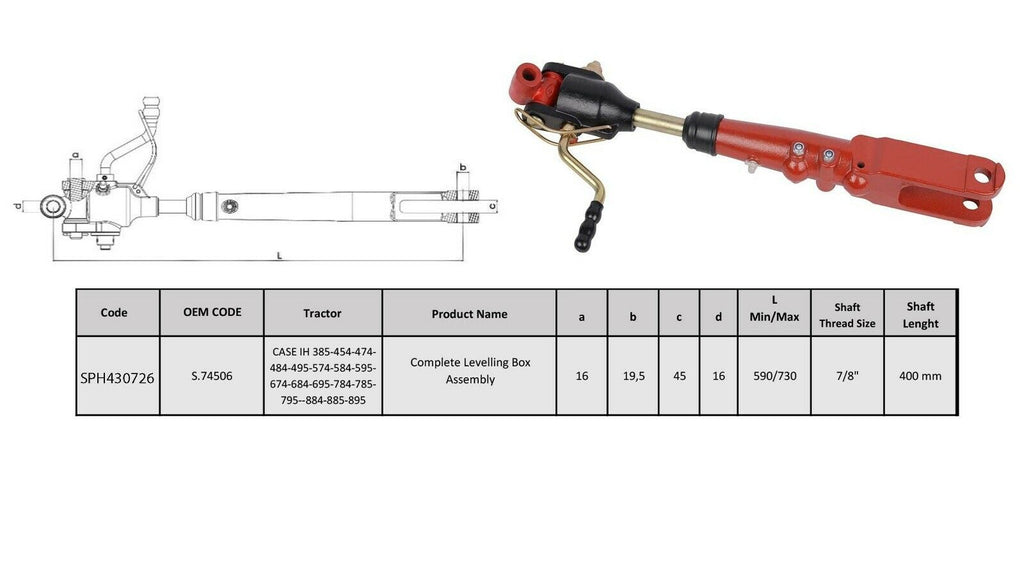

Technical data
Min.–max. length
590–730 mm (23.23–28.74 in)
590–730 mm (23.23–28.74 in)
Adjustment range
140 mm (5.51 in)
140 mm (5.51 in)
Shaft length
400 mm (15.75 in)
400 mm (15.75 in)
Fork distance
45 mm (1.77 in)
45 mm (1.77 in)
Pin sizes
Ø16 mm / Ø19.5 mm (0.63 / 0.77 in)
Ø16 mm / Ø19.5 mm (0.63 / 0.77 in)
Shaft thread
7/8 in
7/8 in
Product type
Adjustable lift link / levelling box
Adjustable lift link / levelling box
Application
Three-point linkage
Three-point linkage
Compatibility check: do not select this part only by appearance. Compare the reference number, minimum and maximum length, shaft length, fork distance, pin sizes, shaft thread and tractor model with your existing part.
Aftermarket replacement part
This is an aftermarket replacement part suitable for the listed Case IH / IHC applications. Brand names and reference numbers are used only to indicate compatibility and do not mean that this is an original Case IH part.
Frequently asked questions
Which reference numbers can I compare?
Compare S.74506, S74506 or 74506 with the number on your existing part, if available.
What is the specified length?
The specified minimum and maximum length is 590–730 mm. The listed adjustment range is 140 mm.
What connection dimensions should I check?
Check the 400 mm shaft length, 45 mm fork distance, Ø16 mm / Ø19.5 mm pin sizes and 7/8 inch shaft thread against your existing part.
Which Case IH / IHC models are listed?
The listed applications are 385, 454, 474, 475, 484, 485, 495, 574, 584, 585, 595, 674, 684, 685, 695, 784, 785, 795, 884, 885 and 895.
Order the correct Case IH / IHC lift link
Compare the reference number, dimensions and tractor model with your existing part. If these match your application, SPH430726 can be ordered as an aftermarket replacement part for the listed Case IH / IHC tractors.
