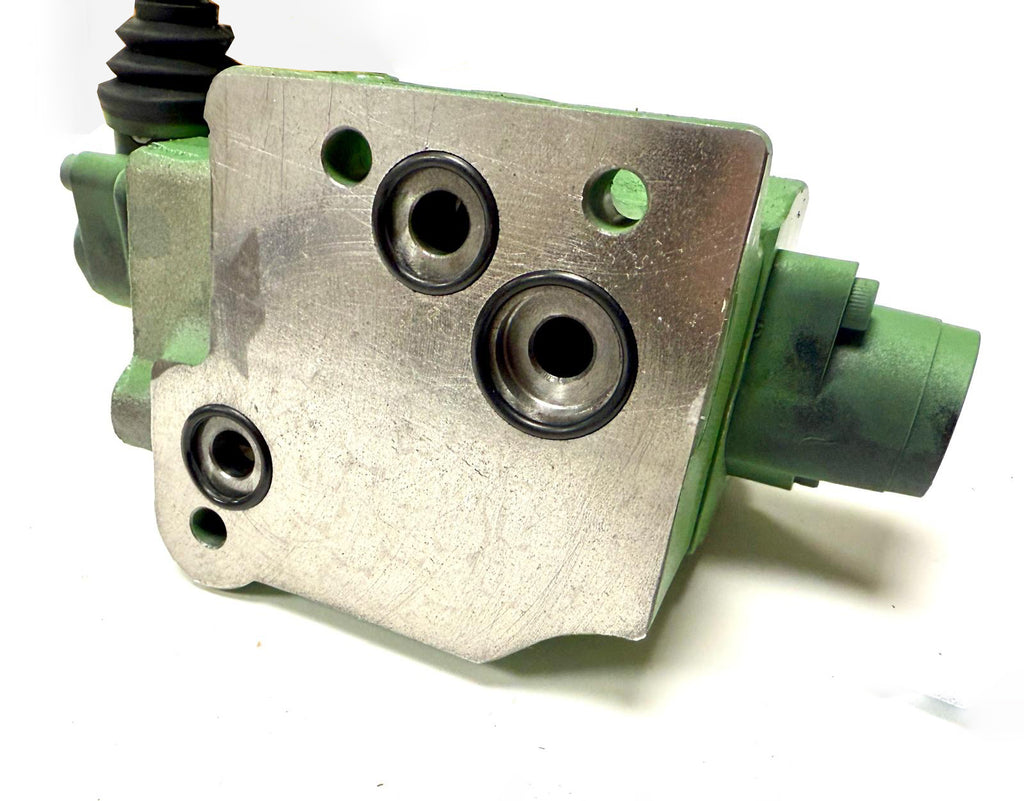

Triple Hydraulic Remote Valve Kit for Deutz 2506 / 3006 / 4006 / 5006 / 6206 – 6-Way – SPH330044

Upgrade your tractor with a high-performance triple hydraulic remote valve kit compatible with Deutz tractors, designed for maximum control, durability, and easy installation.

This triple spool hydraulic remote valve kit for compatible Deutz tractors allows you to operate multiple hydraulic functions simultaneously. The first lever controls both single-acting and double-acting cylinders, while the second and third levers operate double-acting cylinders, making it a powerful 6-way hydraulic control valve for demanding agricultural applications.

This system functions as a hydraulic remote valve, control valve kit, and auxiliary hydraulic kit, allowing you to expand your tractor’s hydraulic capabilities while maintaining the original lift system.

Equipped with ½” ISO 5675 female quick couplers, this tractor hydraulic remote kit ensures fast connection, leak-free performance, and consistent oil flow. The unit mounts directly on the lift cover under the seat and includes all necessary mounting components for straightforward installation.

Key Features

• Triple spool hydraulic control valve – Operates multiple hydraulic functions
• 6-way hydraulic system – First lever single & double acting, second and third double acting
• ½” ISO 5675 quick couplers (female) – Secure and easy connection
• Rear remote valve function – Adds external hydraulic capability
• Direct mounting on lift cover – Under-seat installation
• Heavy-duty construction – Built for agricultural and industrial use
• No float position – Stable and controlled operation

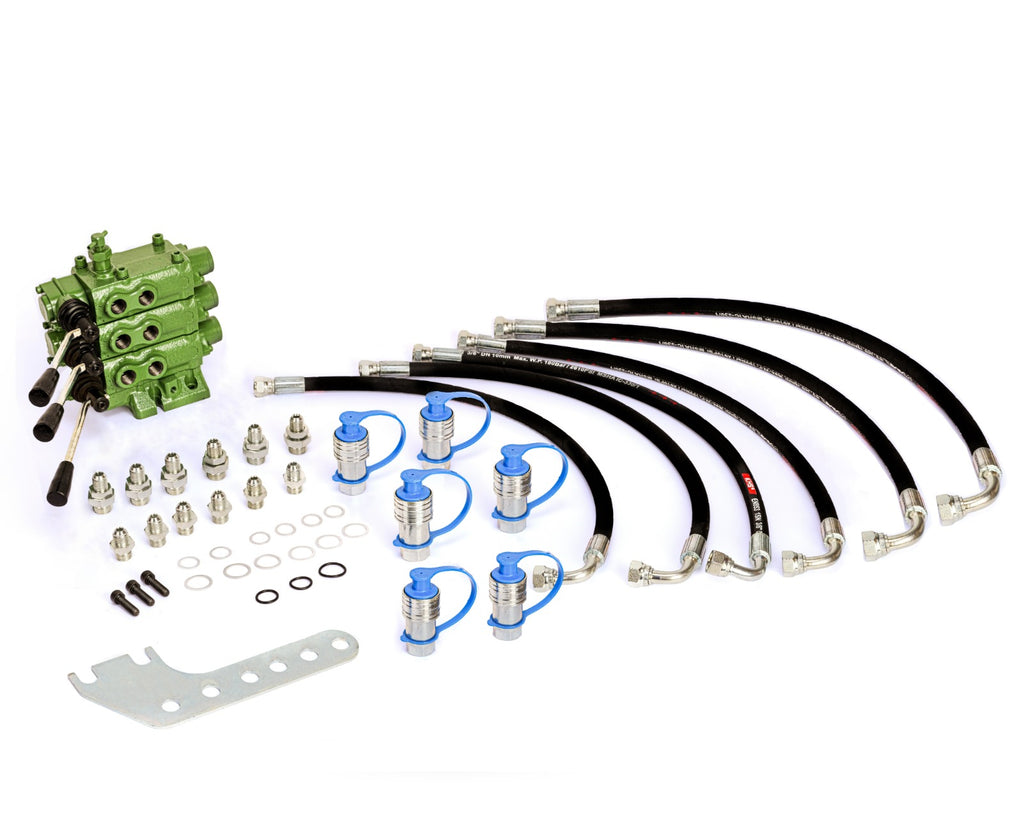

• Complete kit – Includes valve, levers, fittings, hoses, and mounting hardware

Replaces Part Number

02333728

Compatible for Deutz Tractors

This hydraulic remote valve kit compatible for Deutz fits a wide range of models, including:

D Series:
2506 3006 4006 4206 4506 5006 5206 5506 6006 6206 6806 7006 7206 7506

07 Series:
2807 3607 4007 4507 4807 5207 6007 6207 6507 6807 6907 7007 7807

Important Fitment Notice

Ensure there is sufficient clearance between the fender and tractor body. The valve length is 22 cm (8.66 inches). Please verify before ordering. On some Deutz models, the mounting bracket may require adjustment during installation.

Why Choose This Hydraulic Remote Valve Kit?

This triple hydraulic remote valve kit for compatible Deutz tractors is designed for professionals who need maximum control and flexibility. With three levers and 6-way functionality, it allows efficient operation of multiple implements such as loaders, trailers, splitters, and hydraulic tools.

Also known as a triple spool valve, hydraulic control valve kit, tractor remote valve, auxiliary hydraulic kit, or rear remote valve, this product significantly improves your tractor’s performance and versatility.

Specifications

• Product type: Triple hydraulic remote valve kit
• Valve type: Triple spool / 6-way control valve
• Compatibility: Compatible for Deutz tractors
• Couplers: ½” ISO 5675 female quick couplers
• Mounting position: Lift cover (under seat)
• Operation: Triple manual lever control
• Condition: New aftermarket part

Upgrade your Deutz tractor with a powerful hydraulic control solution built for precision, efficiency, and long-term durability.

Technical specifications

For more compatible applications, see our hydraulic remote valve kits for Deutz tractors.
