Double Pilot-Operated Check Valve (3/8″ BSP, Metric 12L) – SPH390200

SKU :  SPH390200
$25.41
In stock
Quantity pricing
QuantityUnit price
1 item$25.41
25+ items$24.14
50+ items$22.87

Items with quantity pricing in this main collection count together.

Shipping costs are calculated at checkout.
Add hydraulic oil 5–210 L
Eurol Hykrol VHLP ISO VG 46 Hydraulic Oil Product details
Capacity
$29.28
No import duties or customs charges on delivery For orders shipped to the United States, Spare Parts Holland covers the import duties and customs charges. You won't be asked to pay these charges when your order arrives.
2-year warranty Warranty information
Shipping to the US View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty Warranty information
Shipping to the US View shipping information
Excellent on Trustpilot Read our reviews

Description

This double pilot-operated check valve with 3/8″ BSP supply ports locks compatible double-acting hydraulic cylinders. Its side connections are metric 12L fittings for 12 mm hydraulic tube. Oil flows toward the cylinder; return flow is blocked until pilot pressure opens the relevant check valve.

Match the actual connections: V1–V2 are 3/8″ BSP ports, not 3/8″ NPT. C1–C2 are metric 12L tube fittings with M18 × 1.5 threads, for 12 mm tube (approx. 0.472″). Use 12 mm tube; do not substitute 1/2″ tube.

How the pilot-operated check valves work

The block contains two pilot-operated check valves. Oil can flow from the supply to the cylinder. Return flow from the cylinder is blocked until pilot pressure opens the relevant check valve. This allows both sides of a double-acting hydraulic cylinder to be locked.

This is a locking function. The valve does not independently control the lowering speed of a load. Check that its operation and connection diagram suit your hydraulic system.

Technical specifications

Part number SPH390200
Type Double pilot-operated check valve
Supply ports V1–V2 3/8″ BSP
Cylinder connections C1–C2 Metric 12L for 12 mm tube (approx. 0.472″)
Tube connection thread M18 × 1.5
Maximum flow Approx. 12.4 US gpm (47 l/min)
Maximum pressure Approx. 5,510 psi (380 bar)
Free-flow cracking pressure Approx. 87 psi (6 bar)
Pilot ratio 1:4
Temperature range −22 to +230 °F (−30 to +110 °C)
Body Free-cutting steel, zinc-plated with Cr³⁺ passivation
Seals NBR
Internal components Case-hardened components

Dimensions according to the drawing

Valve body length 2.56″ (65 mm)
Overall length 5.24″ (133 mm)
Valve body height × width 1.57″ × 1.18″ (40 × 30 mm)
Port center distance V1–V2 1.42″ (36 mm)
Mounting hole Ø 0.31″ (8 mm)

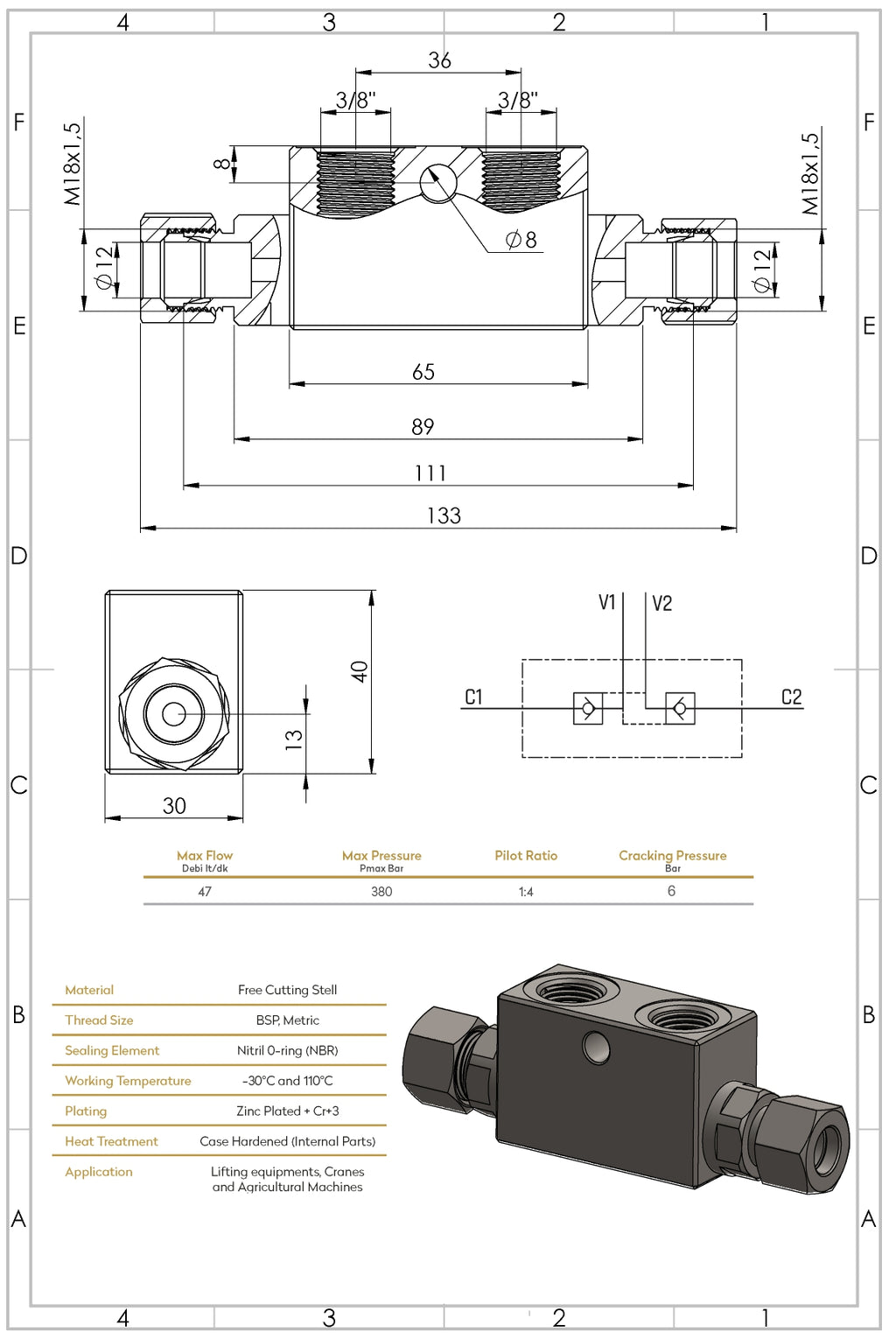

View the technical drawing

See the dimension drawing in the images for the remaining installation dimensions and port positions.

U.S. dimensions, flow and pressure are rounded conversions. Original metric specifications are shown in parentheses. Thread designations remain unchanged.

Scope of supply

  • 1 SPH390200 double pilot-operated check valve with 3/8″ BSP supply ports and 12L tube connections.

Hydraulic cylinder, pipes, hoses and a separate mounting kit are not included.

Connections and installation

Connect the supply lines to V1 and V2 and the cylinder lines to C1 and C2, following the hydraulic diagram. Before installation, check connection sizes, available space, system pressure and required oil flow. Depressurize the system and keep lines and connections clean.

The cylinder-side connections are designed for 12 mm hydraulic tube. A hose requires a suitable matching fitting; a similar hose diameter does not make it compatible with a metric 12L tube fitting.

Related hydraulic components

For another port configuration, compare the double pilot-operated check valve with BSP threaded ports. Verify the connections and specifications before choosing an alternative.

Also explore our hydraulic valves and hydraulic hoses. Compare connections and specifications before combining components.

Need help choosing?

Send the SPH number, a photo of your existing valve and the connection sizes via WhatsApp. We can help you choose the right version.

Ask us via WhatsApp
