Hydraulic Top Link Rapid Hook Cat. 2-2 (665–1005 mm / 26 3/16”–39 9/16”) Incl. Locking Block and 2 Hydraulic Hoses - SPH320094

Hydraulic Top Link Rapid Hook Cat. 2-2 (665–1005 mm / 26 3/16"–39 9/16") – Incl. Locking Block and 2 Hydraulic Hoses – SPH320094

Upgrade your tractor’s three-point hitch with a Cat. 2-2 hydraulic top link featuring a rapid hook for fast, safe implement changes and precise angle adjustment directly from the cab. The integrated locking block (check valve) holds position under load and only releases when hydraulic pressure is applied again, giving you confident control in everyday field work.

Who it fits

• Category 2 tractors (25 mm / 1" pin) on both ends
• Recommended tractor power: 30–90 kW / 40–120 HP

Product overview

This hydraulic top link replaces the manual version and makes setting the working angle significantly easier—right from the driver’s seat. The check valve inside the locking block reliably holds the set length and opens only when hydraulic pressure is applied again, so you stay in full control. A must-have for professionals who want to work more efficiently and safely with implements such as mowers, scrapers, box graders, or bale spears.

Why choose this rapid-hook top link

• Rapid hook latch for quick, one-handed coupling of the implement’s top pin
• Locking block with check valve keeps length stable under load
• Cab-controlled hydraulic adjustment for faster setup and higher productivity
• Durable construction and clean hose routing for daily agricultural use

What’s included

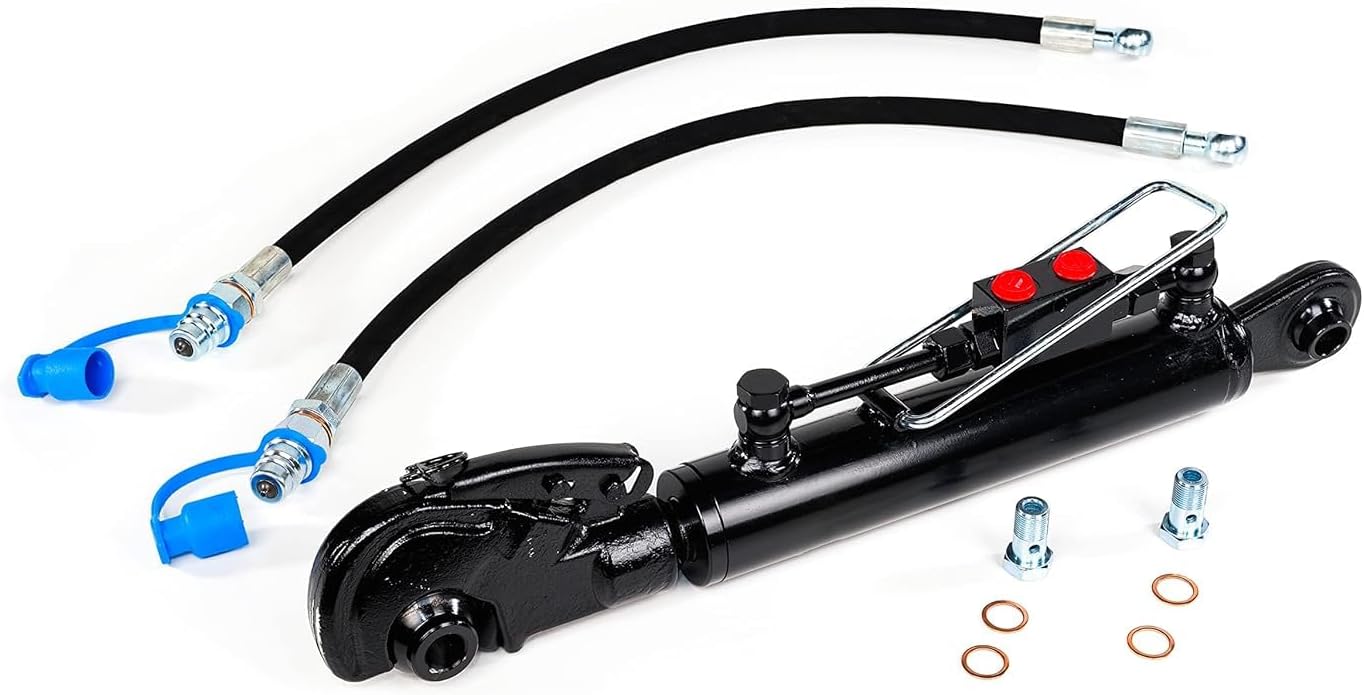

• Hydraulic Top Link Cat. 2-2 with rapid hook (665–1005 mm / 26 3/16"–39 9/16" length range)
• 2 hydraulic hoses for plug-and-play installation
• Locking block (check valve) pre-installed

Compatibility and setup

• Requires a double-acting spool valve on the tractor
• Compatible with 12.7 mm / 1/2" ISO 5675 (Series A) quick couplers

Buying guide

1. Confirm category: Cat. 2 uses a 25 mm / 1" pin on both ends.
2. Measure your current top link retracted and extended to ensure the 665–1005 mm / 26 3/16"–39 9/16" range covers your implements.
3. Check hydraulics: a double-acting control and 12.7 mm / 1/2" ISO 5675 couplers are standard on many tractors in the 30–90 kW / 40–120 HP range.
