Hydraulic Top Link Cat 2-2 (23 5/8” - 34 5/8”) Rapid Hook, Locking Block and 2 Hoses - SPH320053

Hydraulic Top Link Cat 2-2 (23-5/8" - 34-5/8") Rapid Hook, Locking Block and 2 Hoses

Upgrade your tractor’s 3-point hitch system with the Spare Parts Holland Hydraulic Top Link Cat 2-2. This professional-grade hydraulic top link replaces a standard mechanical top link and allows you to adjust the working angle of your implement directly from the cab—improving comfort, control, and efficiency.

Engineered for demanding agricultural applications, the integrated locking block system ensures the cylinder maintains a secure and consistent position, even under heavy load.

Key Features

• Fits Category 2-2 tractors for heavy-duty 3-point hitch applications
• Hydraulic adjustment from the cab – saves time and reduces manual effort

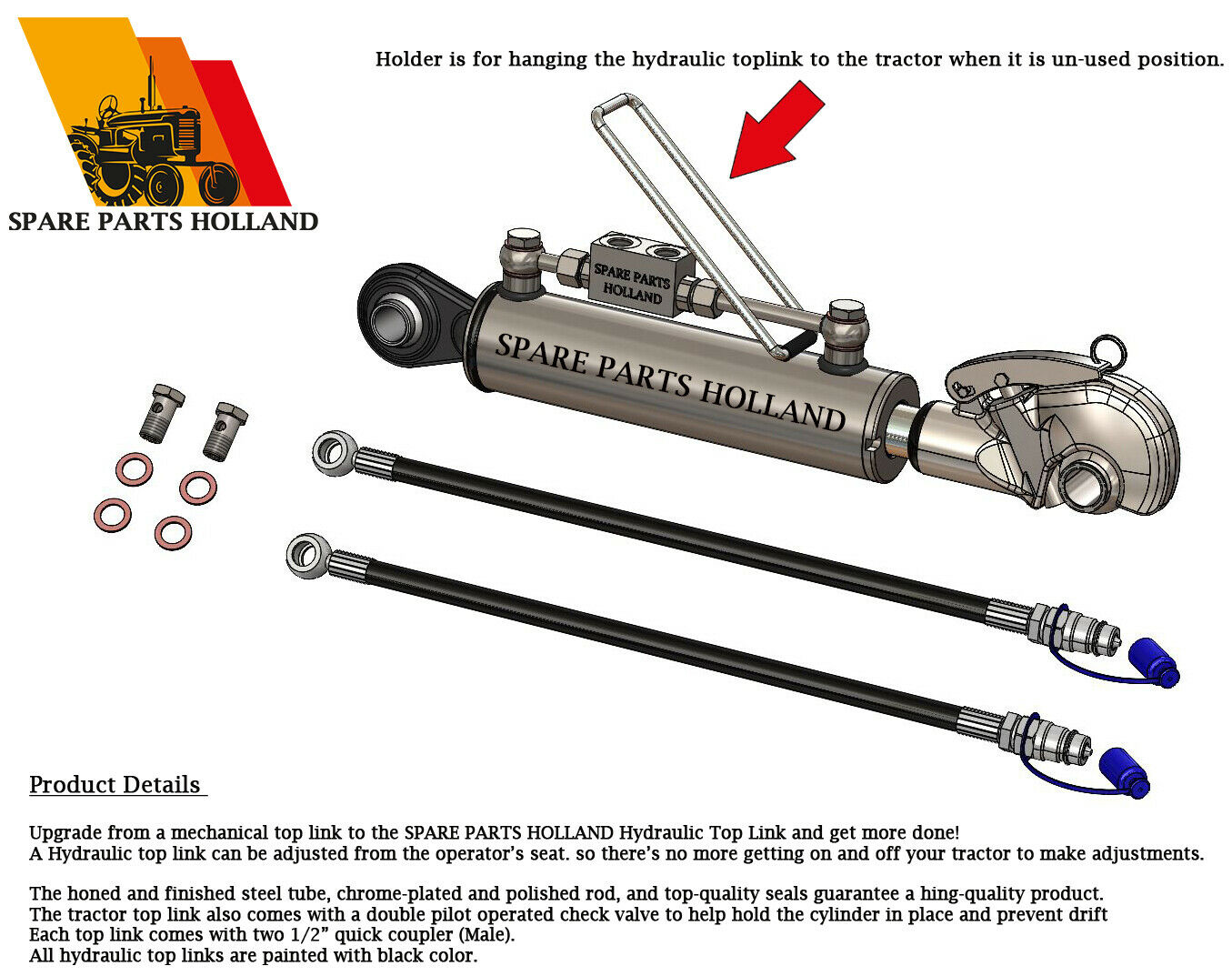

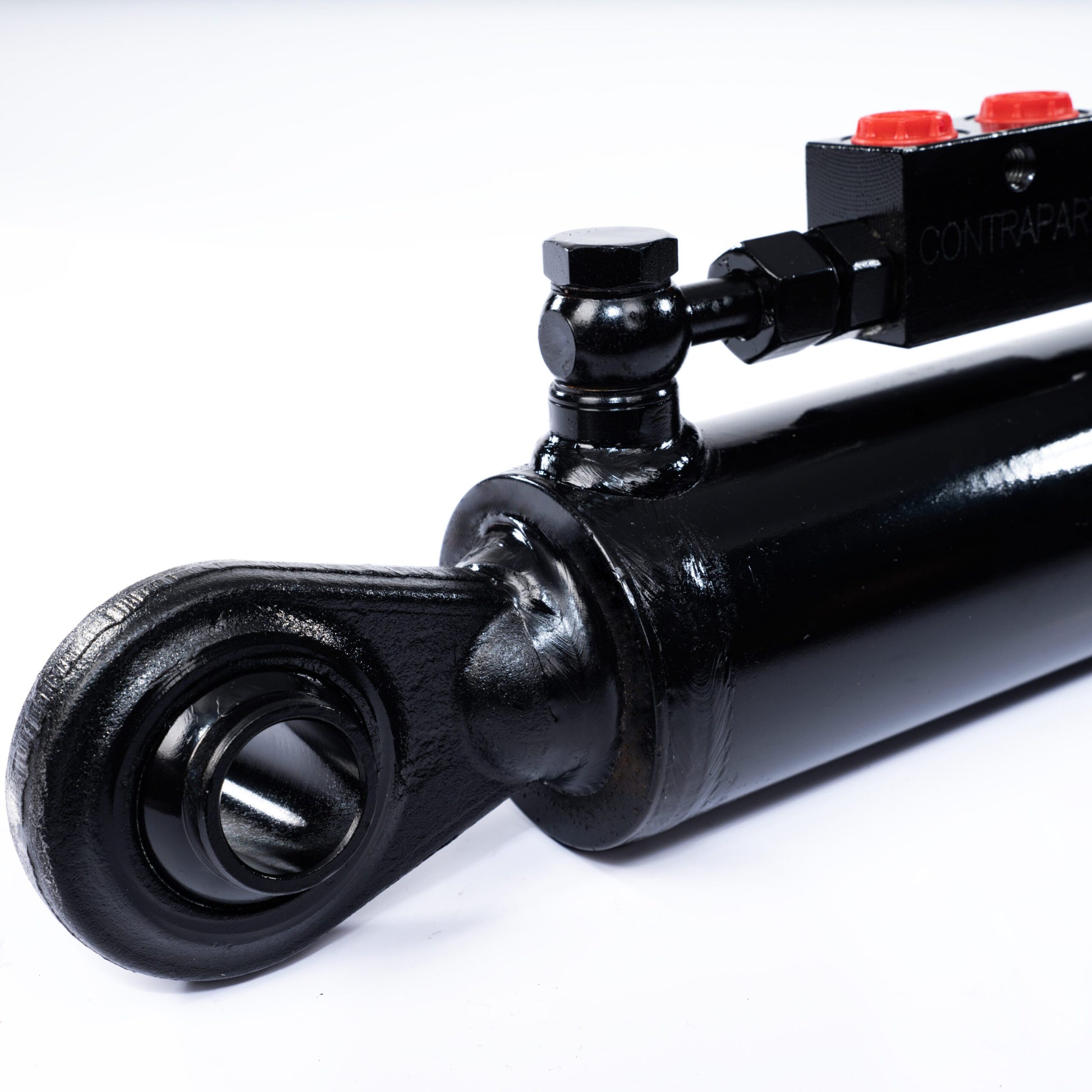

• Integrated locking block with check valve – keeps the cylinder firmly in position during use and transport
• Heavy-duty steel construction with durable black protective finish
• Rotating piston rod for easy installation and precise implement positioning

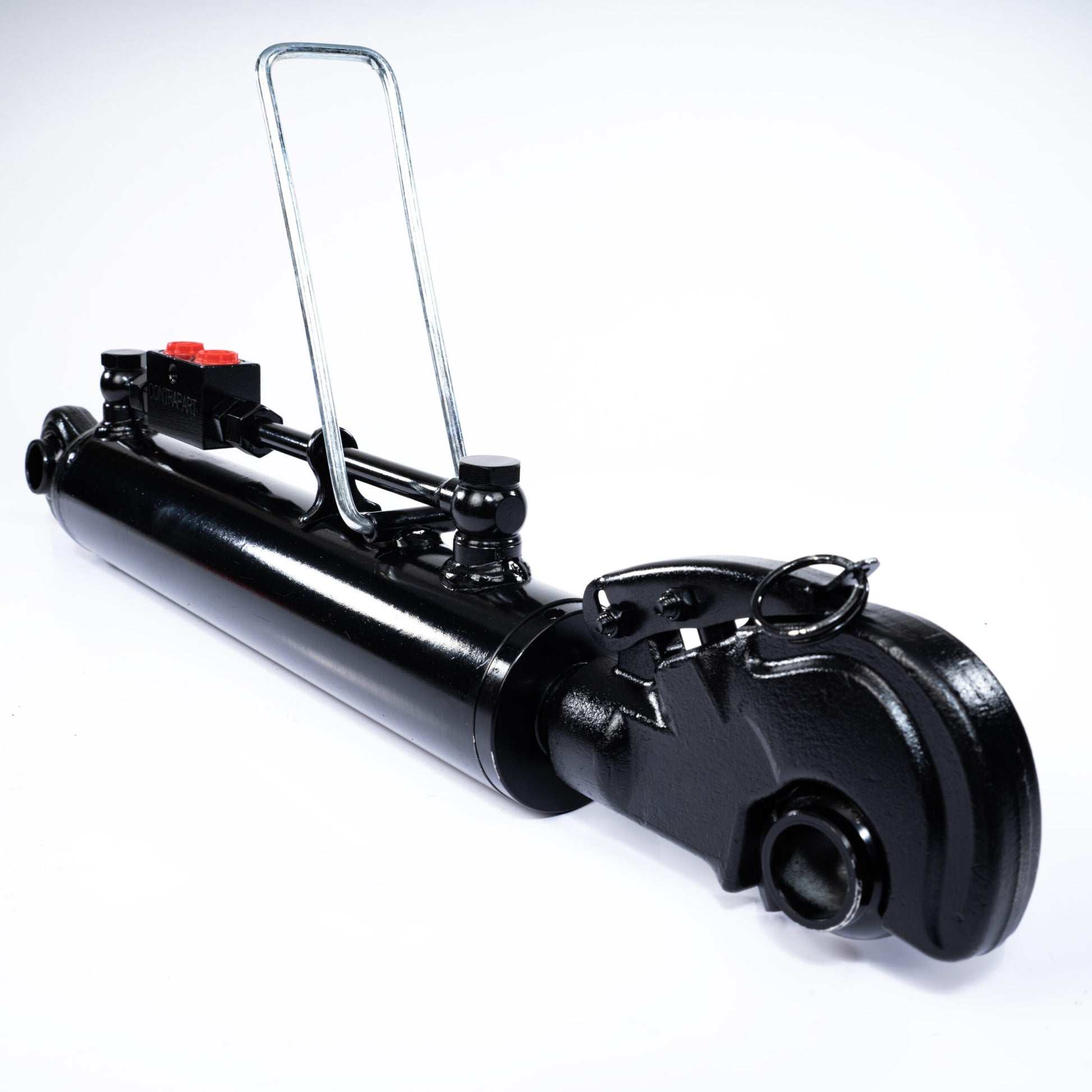

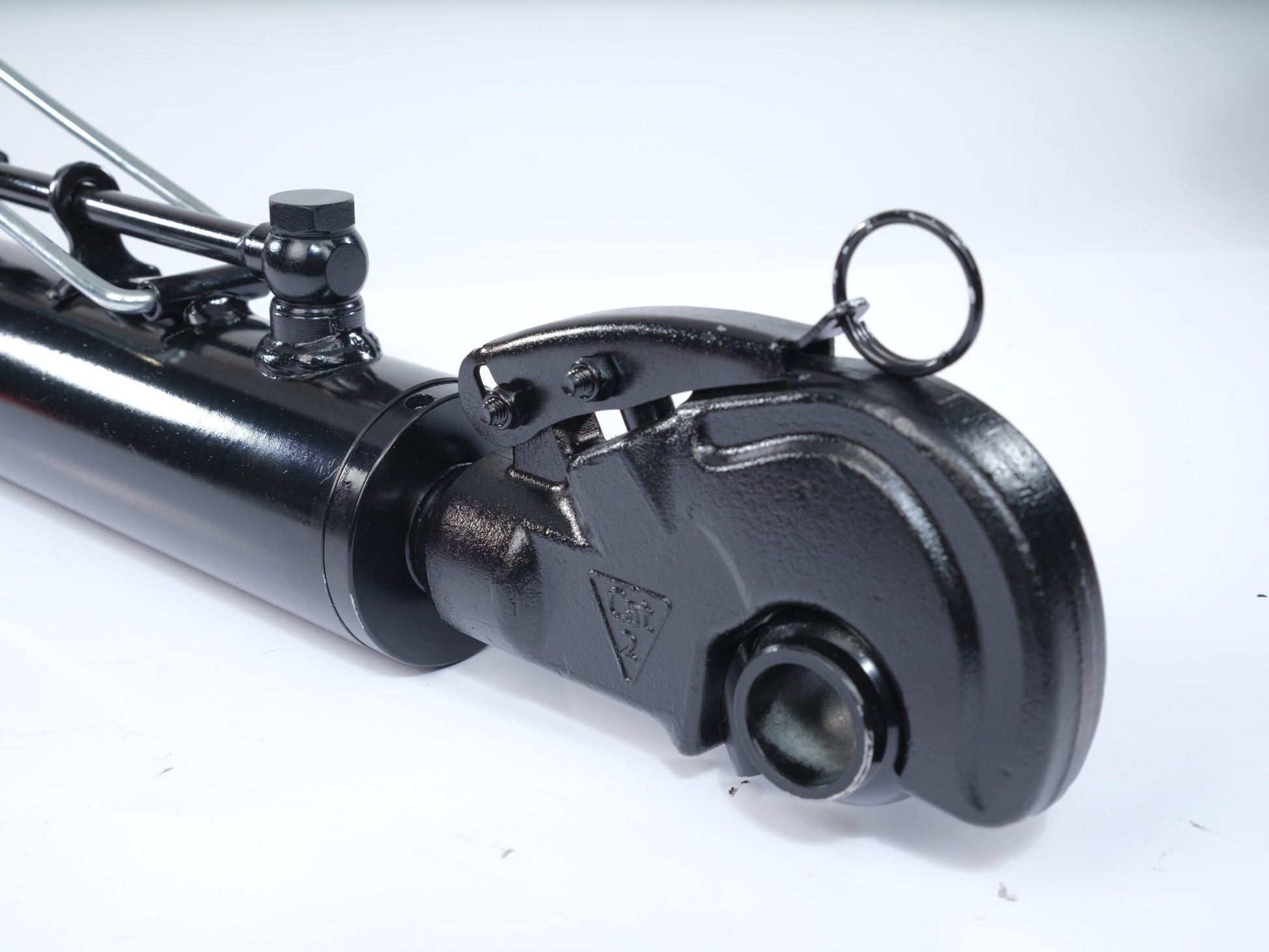

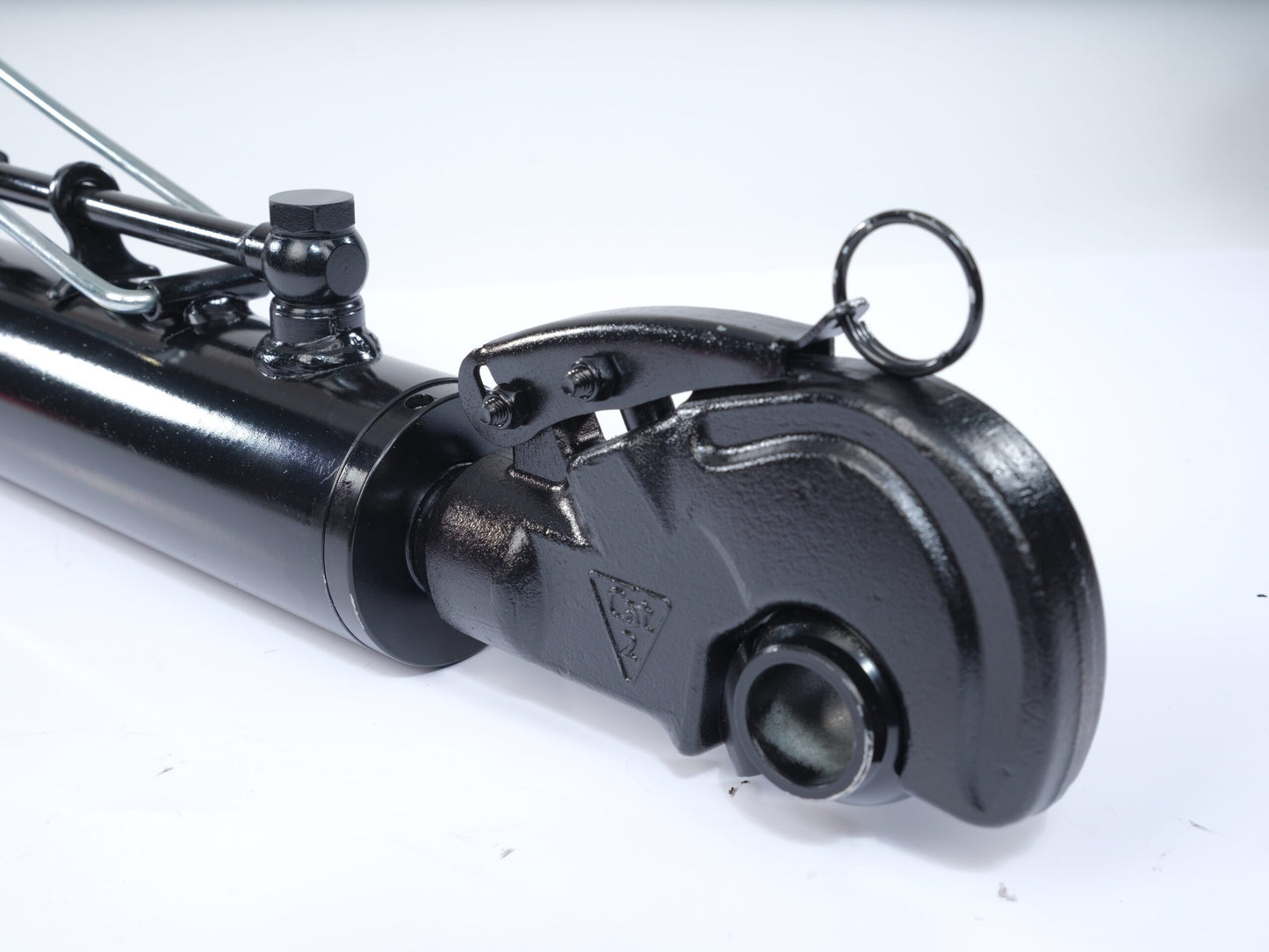

• Rapid hook design for quick and efficient attachment
• 3/4" pin holes and 1-3/4" ball width for secure and stable mounting
• Designed for double-acting hydraulic systems for stable and controlled operation

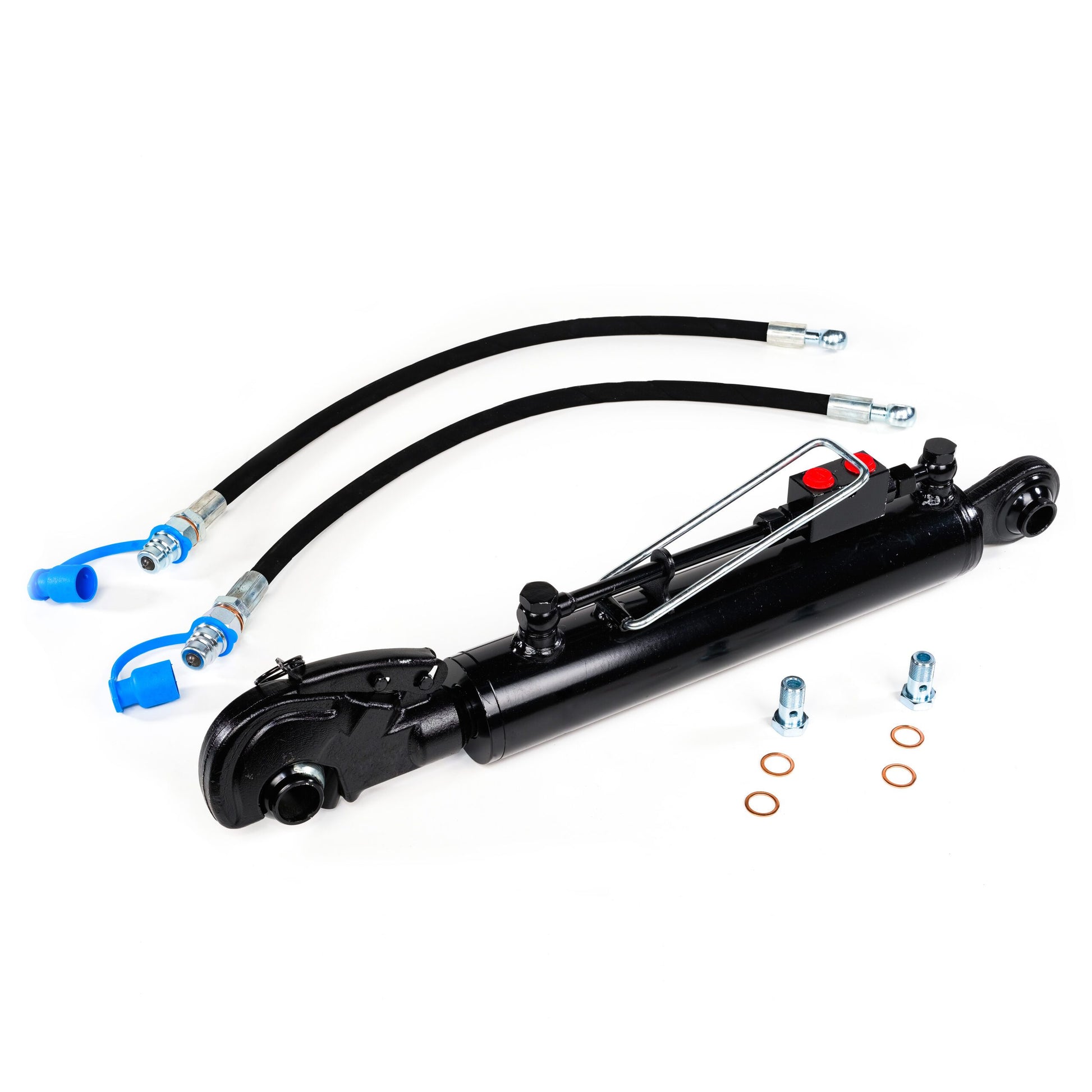

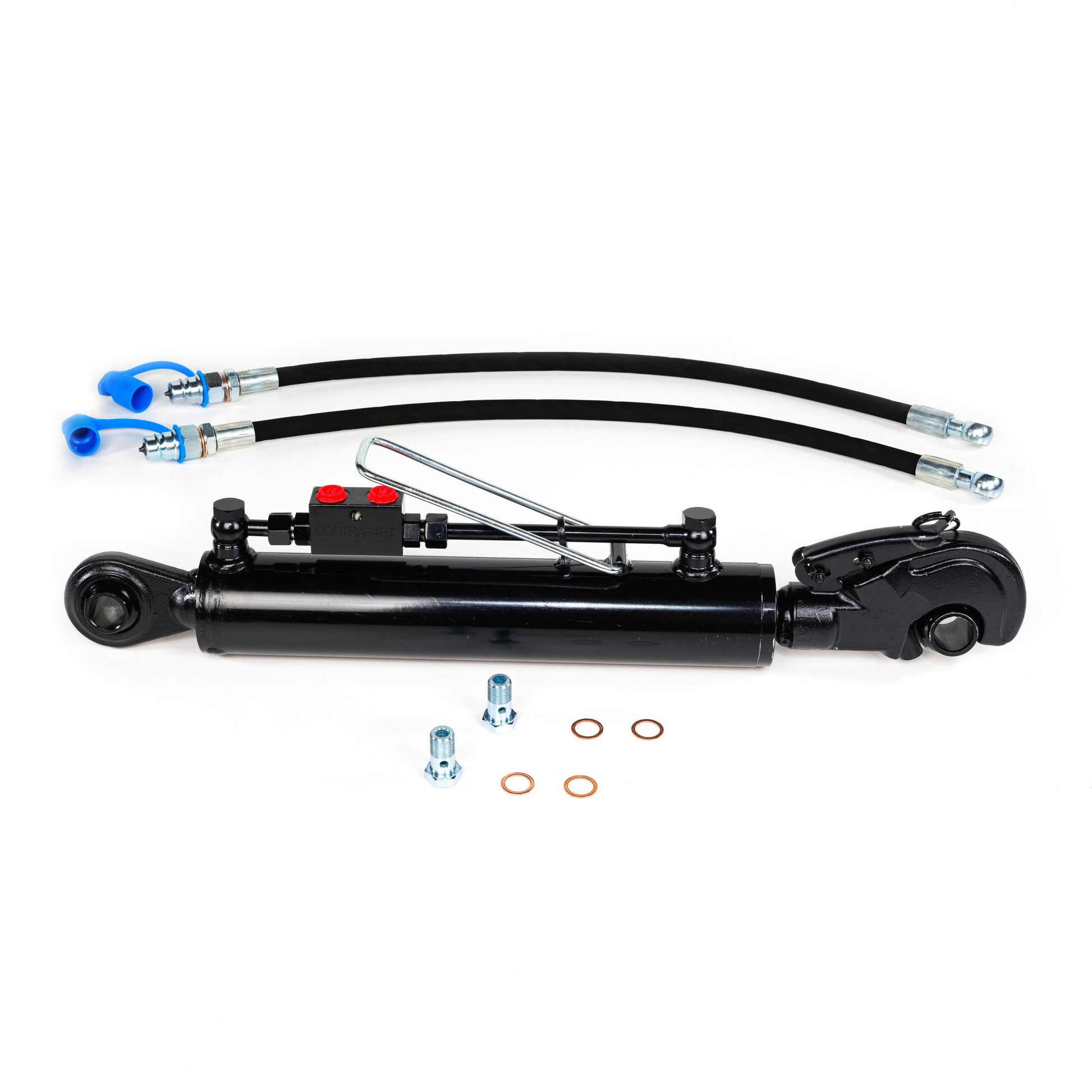

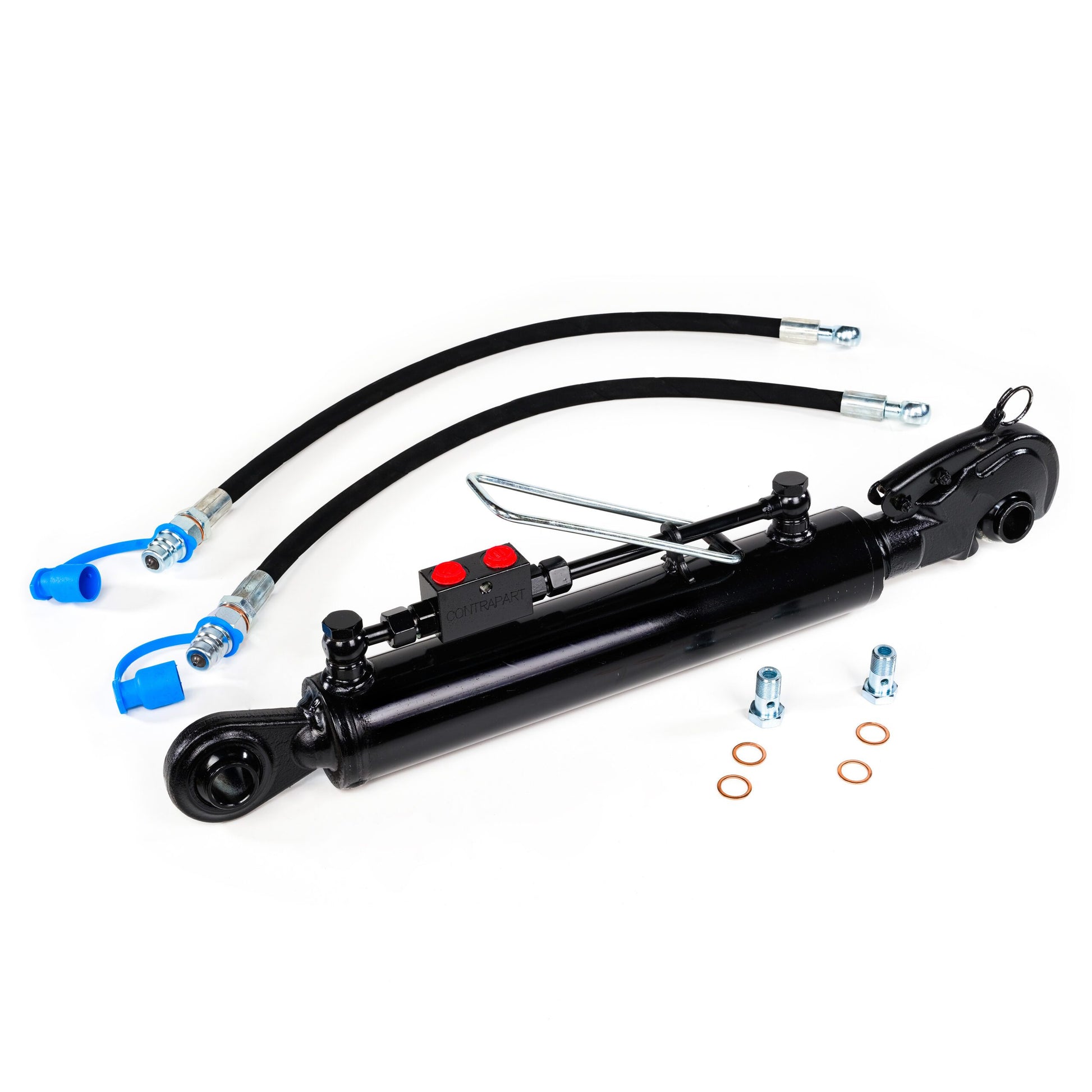

What’s Included

• 1 × Hydraulic Top Link (black painted finish)
• 2 × Hydraulic hoses (29.5")
• 2 × Male quick couplers
• Protective dust covers
• Banjo bolts with sealing rings

Technical Specifications

• Model: SPH320053

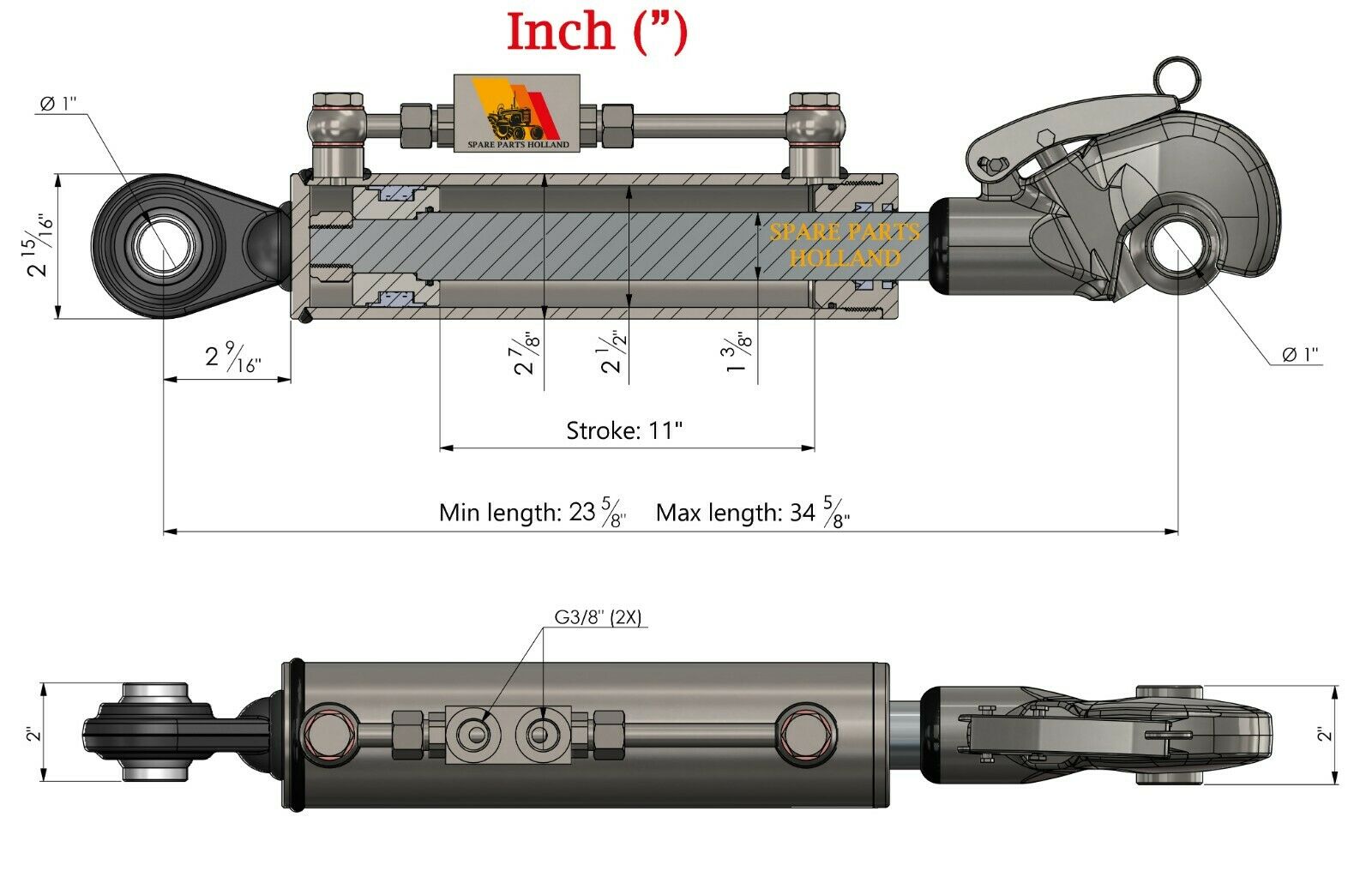

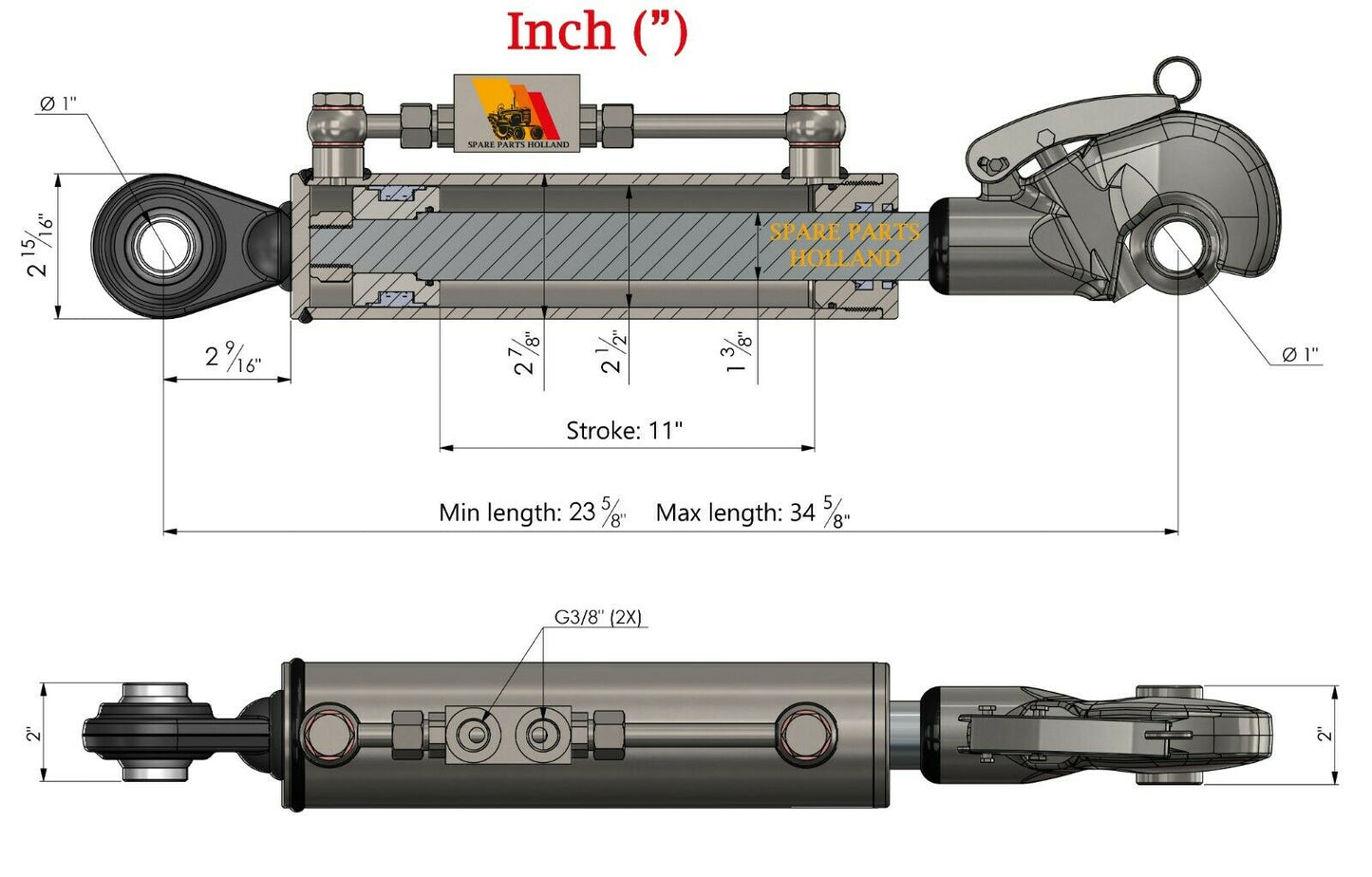

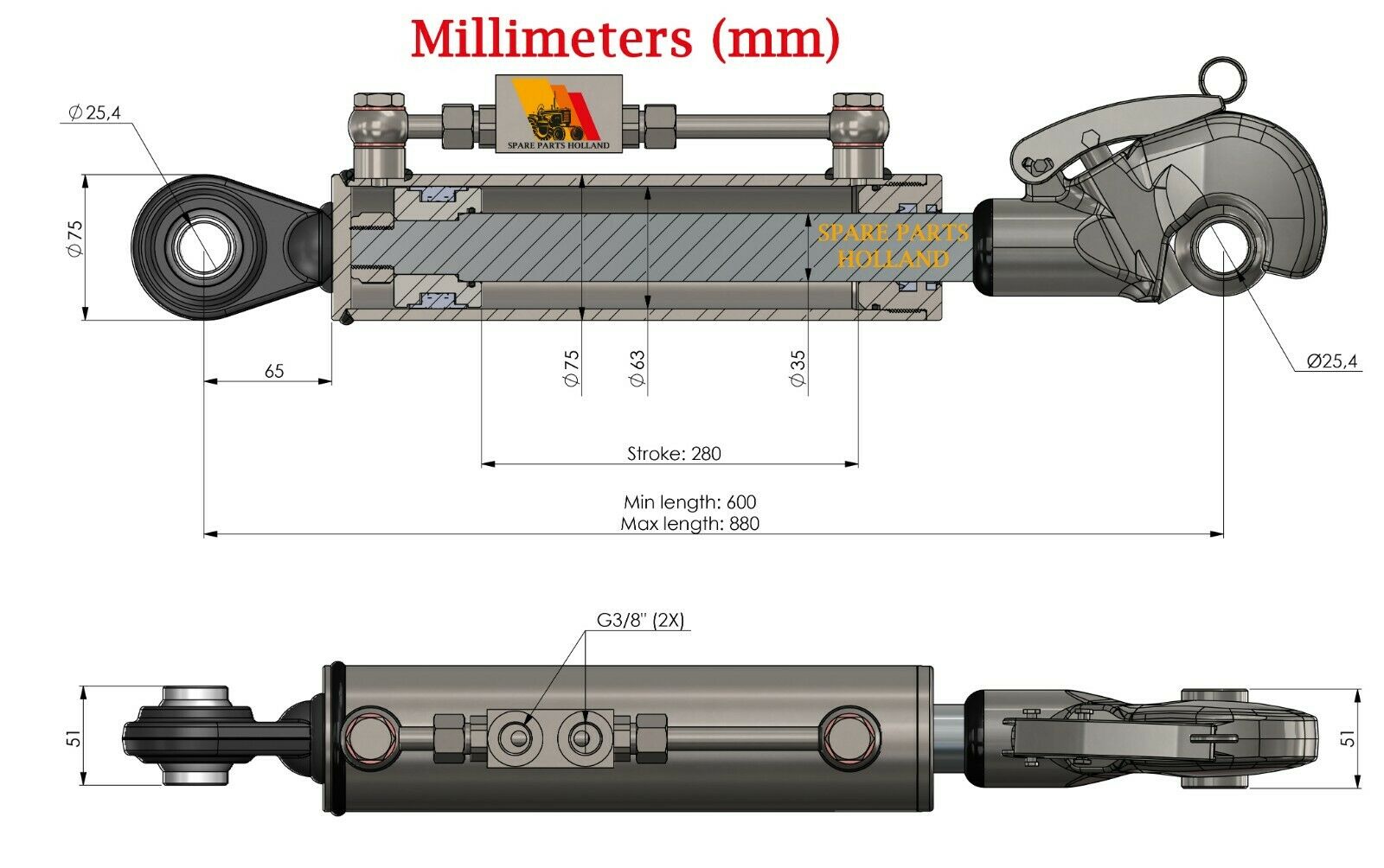

• Working length range: 23-5/8" – 34-5/8"
• Stroke length: 11"
• Maximum hydraulic pressure: 3,625 PSI
• Operating pressure: 2,610 PSI
• Push force: 12,588 lbs @ 2,610 PSI
• Pull force: 8,708 lbs @ 2,610 PSI
• Hydraulic hoses: 3/8" Blue Flex SAE 100 R2AT
• Hose length: 29.5"
• Quick coupler type: Connection 12-L, bulkhead size 3

How to Choose the Right Top Link

• Check the category:
  • Category 2 → 1" pin holes (typically 40–120 HP)
  • This model is designed as a Category 2-2 hydraulic top link for heavier-duty applications
• Measure the working range:
  • Measure your current top link in both retracted and extended positions
  • Select a model with the correct closed length, extended length, and stroke
  • This model offers a working range from 23-5/8" to 34-5/8"
• Check your hydraulic setup:
  • Operating pressure: 2,610 PSI
  • Maximum system pressure: up to 3,625 PSI
  • Requires a double-acting hydraulic control valve

Product Overview

This Hydraulic Top Link Cat 2-2 replaces a manual top link and enables fast, precise adjustment of your implement angle directly from the operator’s seat. The integrated locking block with check valve ensures the cylinder remains securely in position and only adjusts when hydraulic pressure is applied.

With its robust construction, extended adjustment range, complete installation kit, and reliable locking performance, this hydraulic top link is an ideal upgrade for operators who require strength, flexibility, and precision in demanding conditions.

Upgrade your tractor today and experience improved efficiency, control, and working comfort.
