Hydraulic top link Cat 2 with hook and two hydraulic hoses — SPH320054
Hydraulic top link Cat 2 with hook and two hydraulic hoses — SPH320054
Hydraulic top link Cat 2 with hook (720–1120 mm), with 2 hoses – SPH320054

Hydraulic top link Cat 2 with hook (720–1120 mm), with 2 hoses – SPH320054

SKU :  SPH320054
€229,00
€189,26 excl. VAT
Shipping calculated at checkout.
10 in stock
Quantity pricing
Quantity Unit price (incl. VAT)
1 item €229,00
10+ items €220,53
20+ items €212,06

Complete hydraulic top links count together. You’ll see the discount in your cart and at checkout.
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

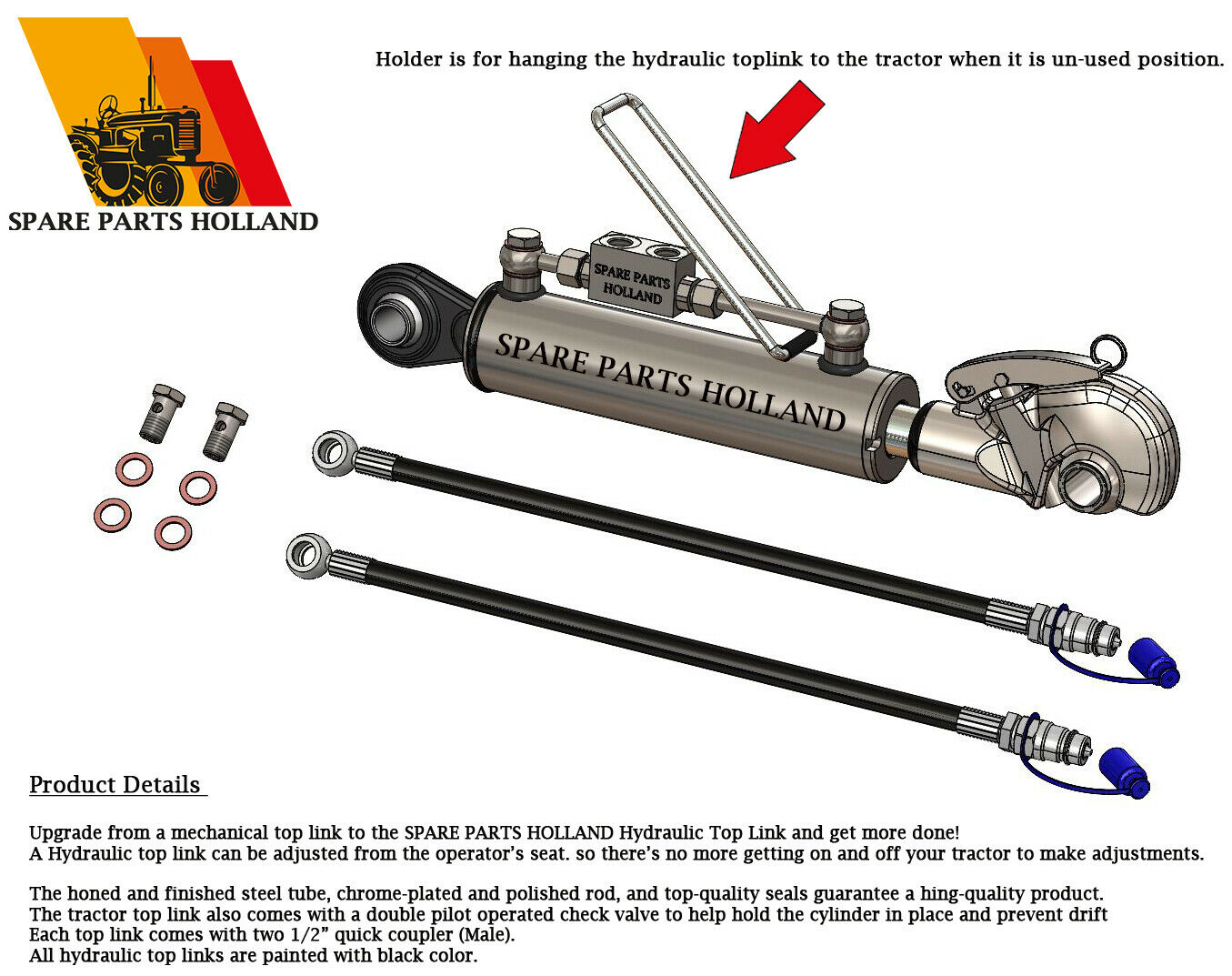

This Cat 2 hydraulic top link with hook replaces the mechanical top link on your tractor. Adjust its length using the tractor hydraulics to change the implement's working angle from the tractor seat. It has a 720–1120 mm length range, 400 mm stroke and 63/35 mm cylinder bore/piston rod. Supplied with 2 hoses with quick couplings, 2 banjo bolts and 4 sealing washers.

CAT 2-2 · 720–1120 MM · 63/35 MM

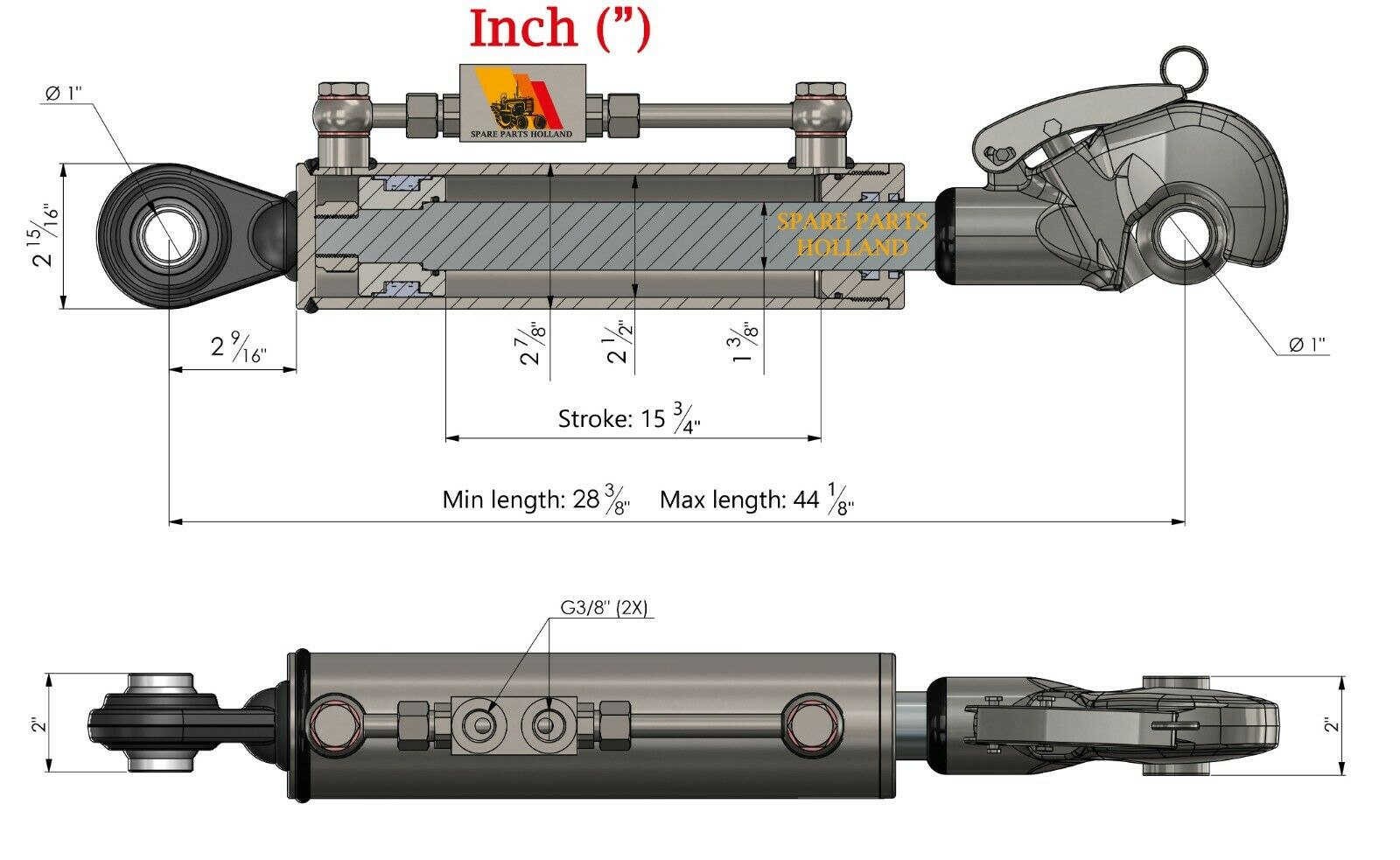

Check the fit before ordering. Compare the required length, both mounting points and available clearance with the technical drawing. Category or tractor make alone does not confirm a suitable fit.

Mounting holes: Ø25.4 mm; end widths: 51 mm and 51 mm.

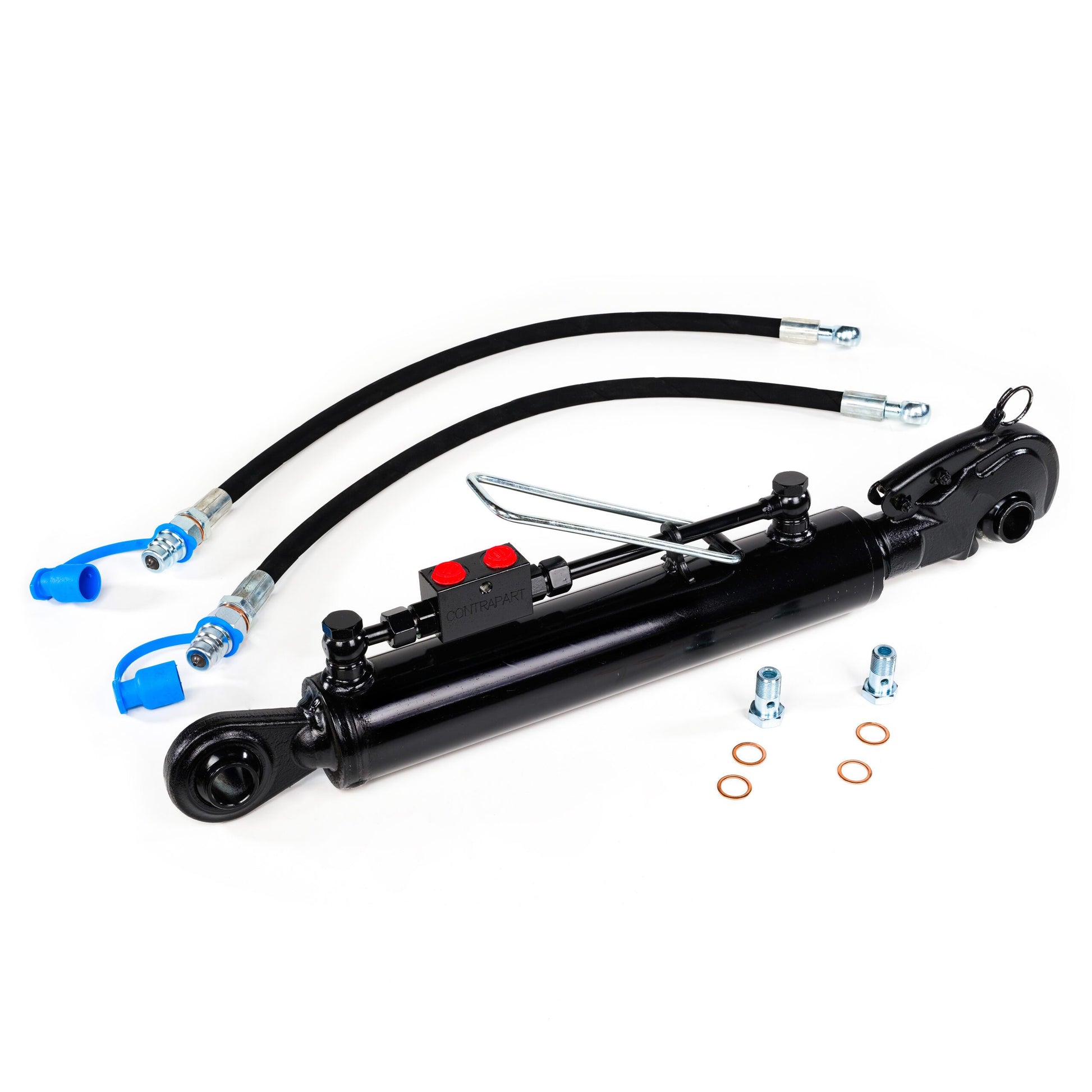

What is included?

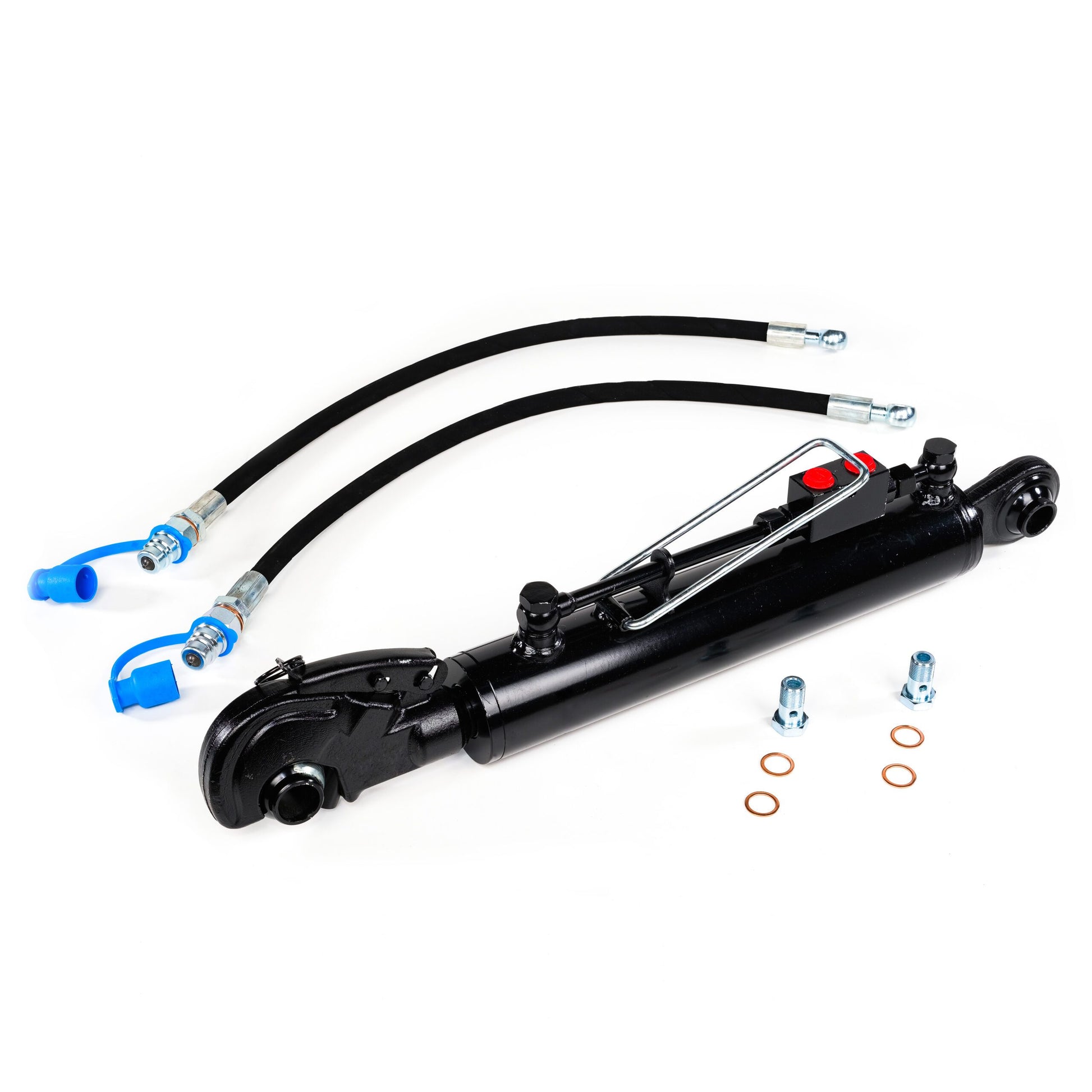

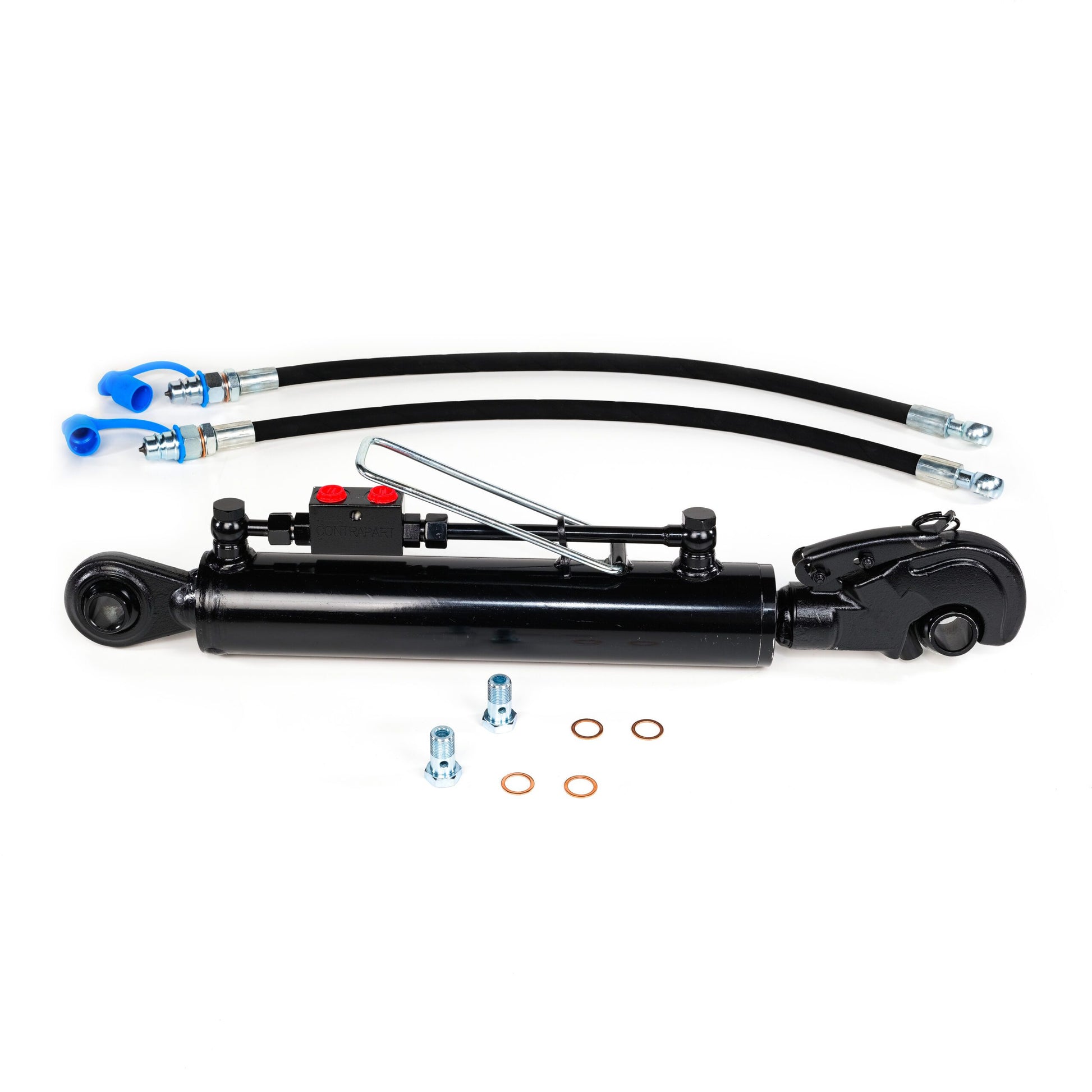

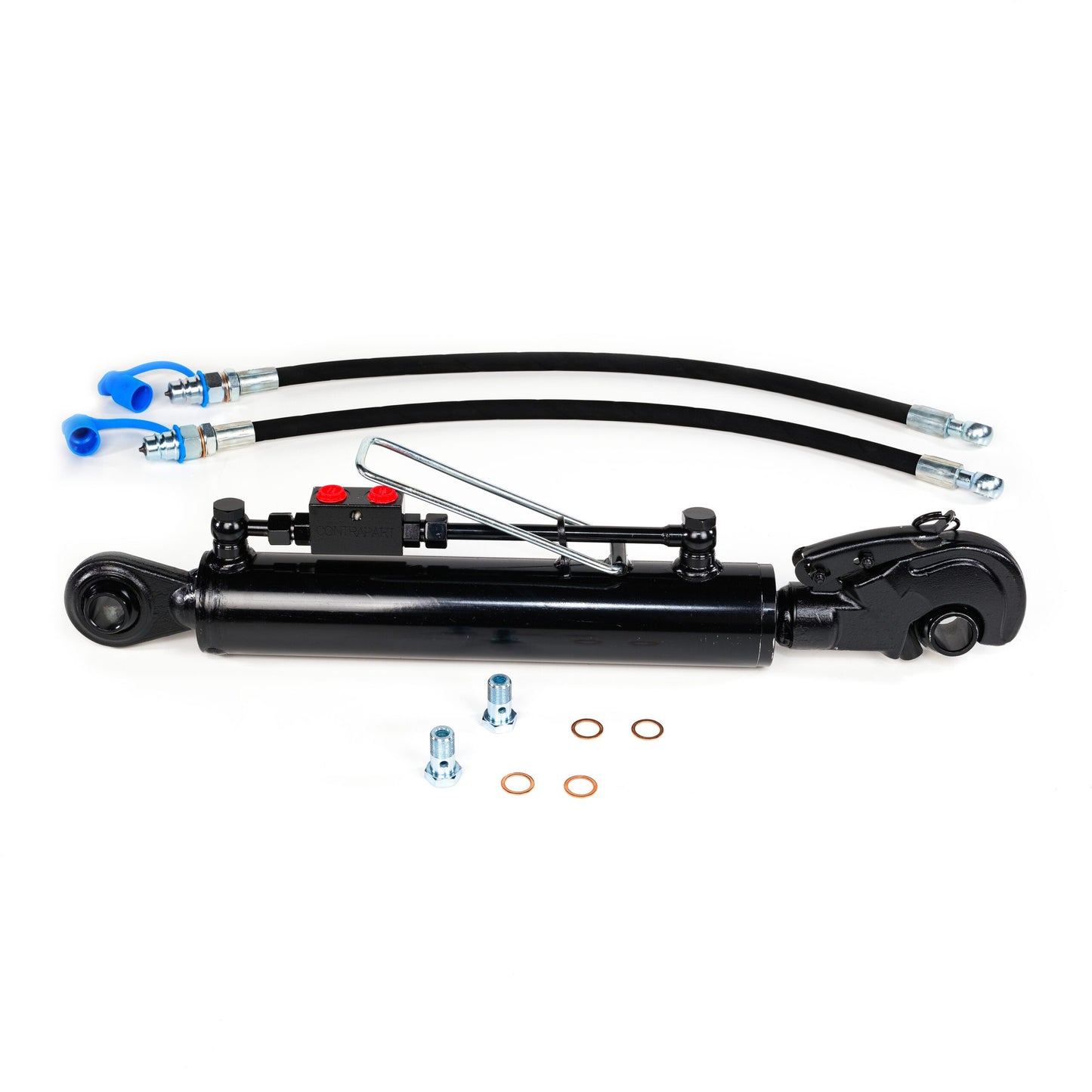

  • 1 × hydraulic top link
  • 2 × hydraulic hoses — DN10 / 3/8″ SAE 100 R1AT; 75 cm; male 1/2″ poppet quick couplings; dust covers
  • 2 × banjo bolts — 3/8″ BSP
  • 4 × sealing washers

The 75 cm length includes the quick coupling and is measured from the centre of the banjo eye to the tip of the coupling.

The hydraulic locking block is the valve block on top of the cylinder. Check that the quick couplings match your tractor and that the hoses have sufficient clearance throughout movement.

Will this version fit your tractor?

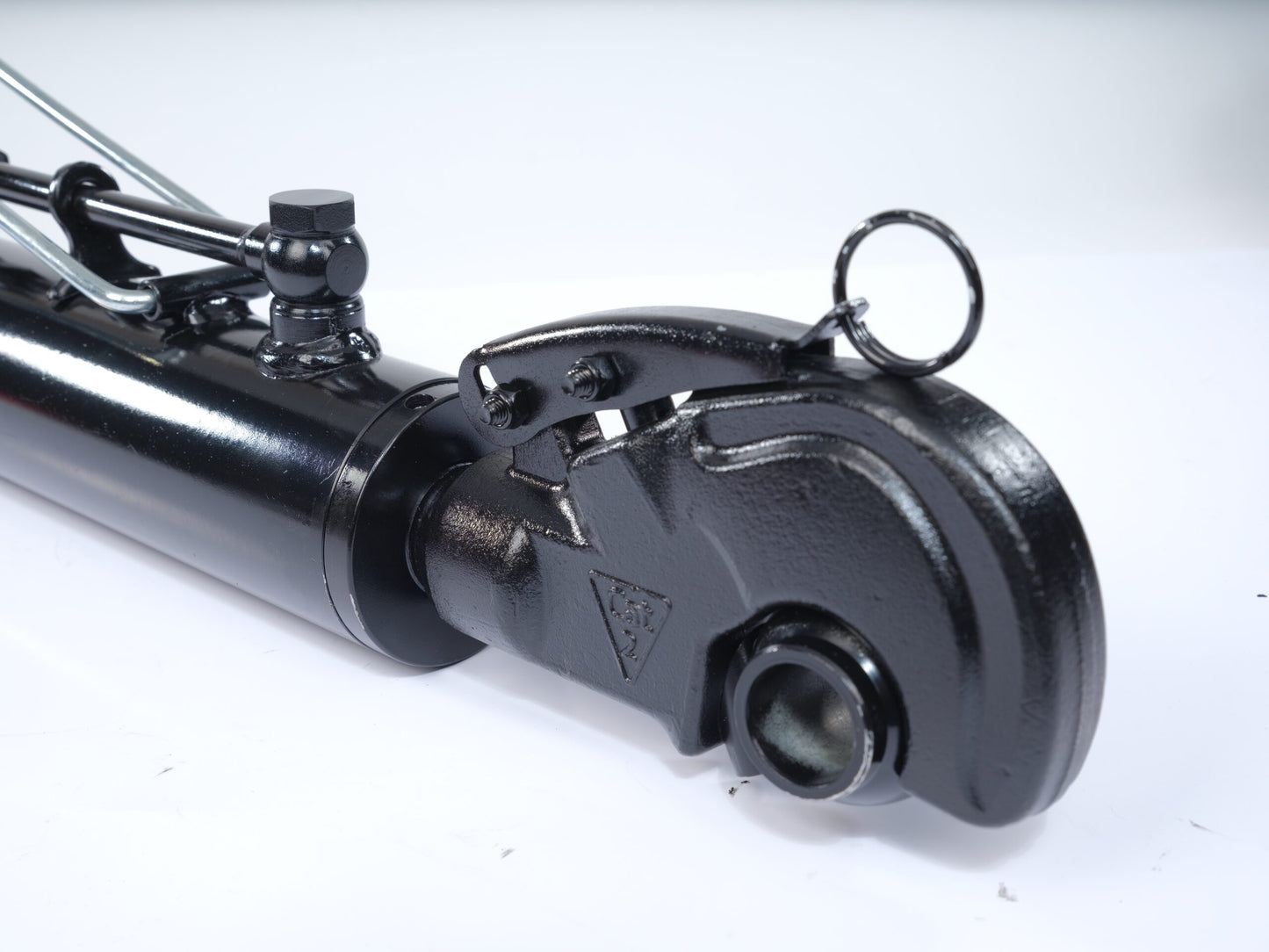

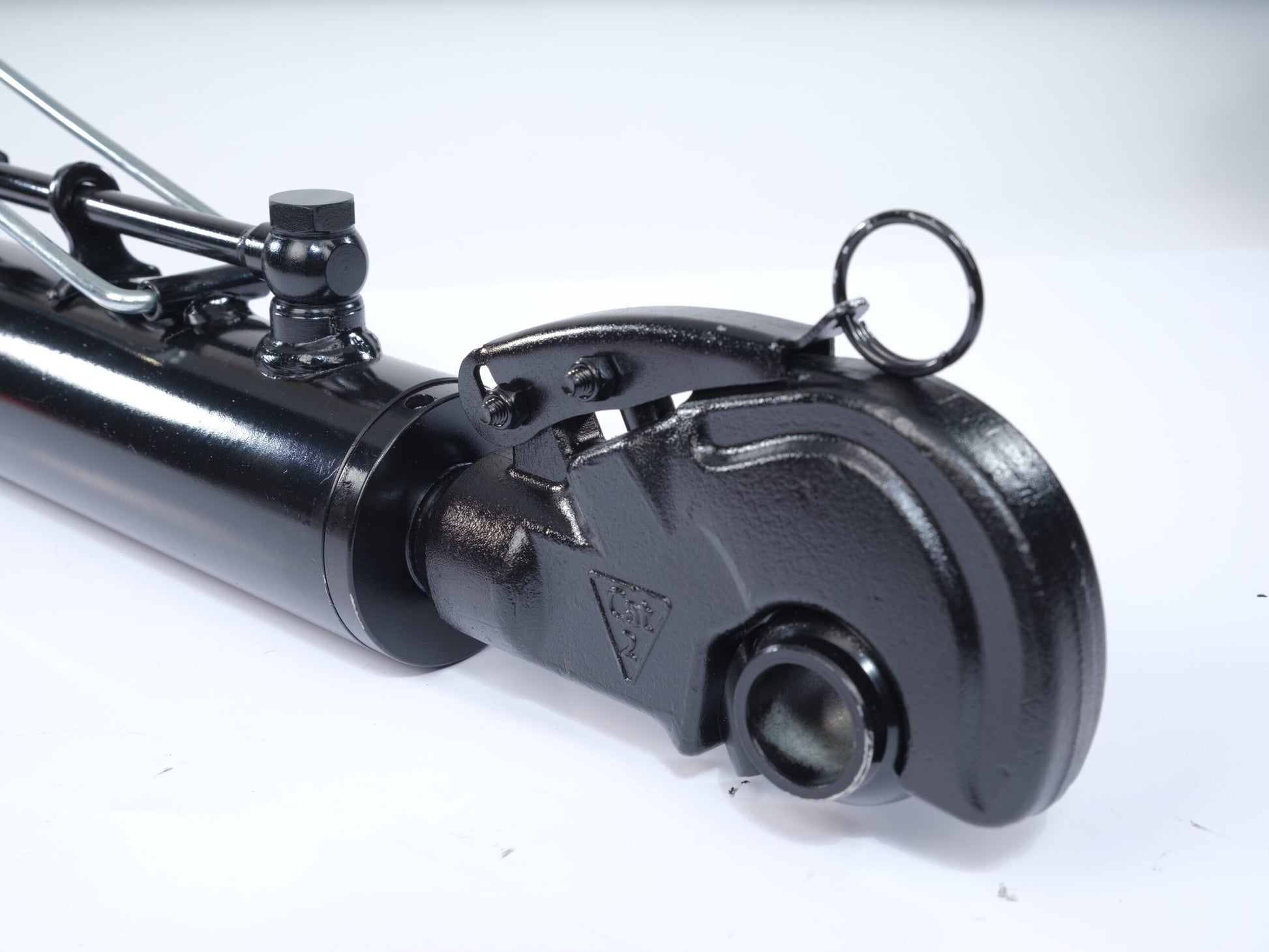

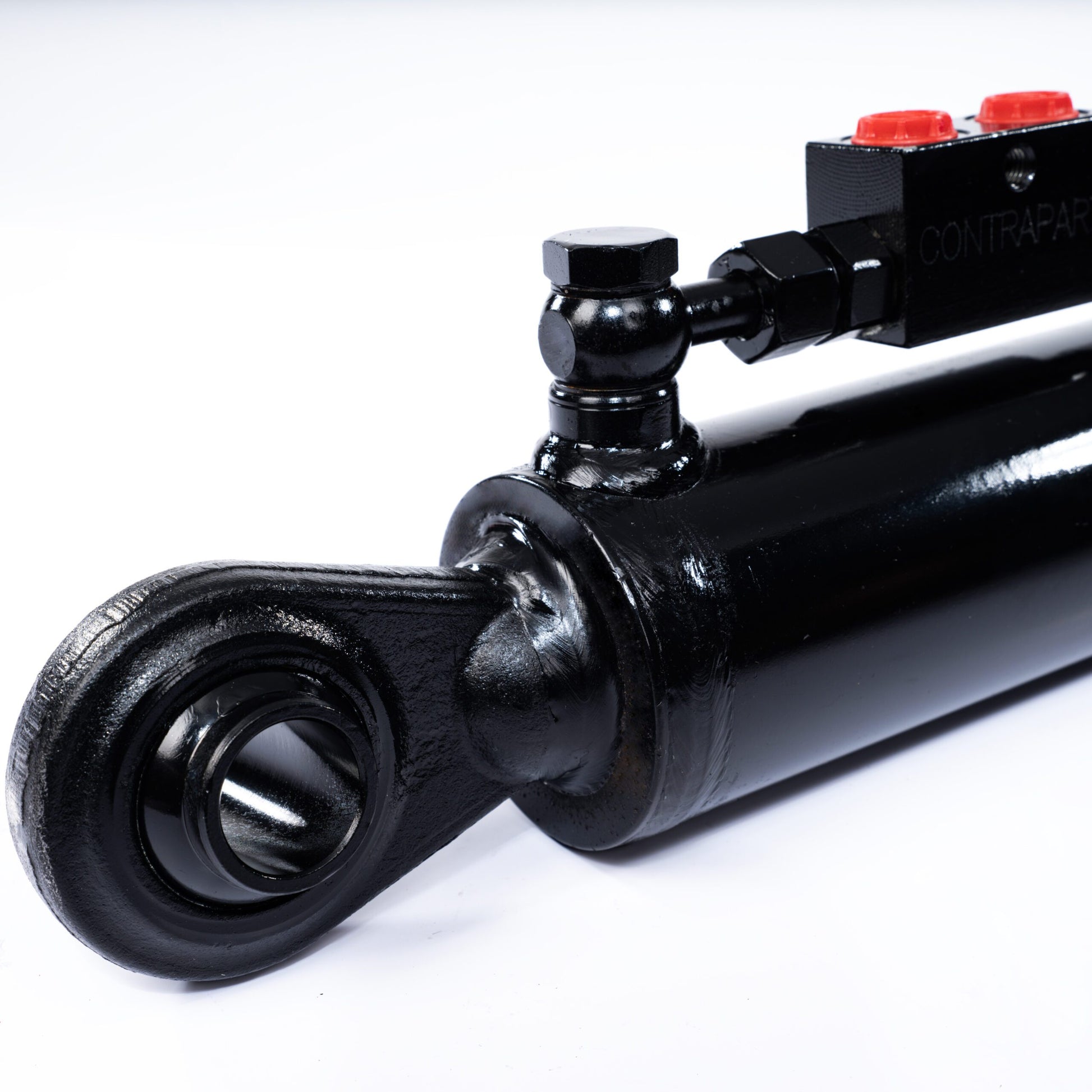

A ball joint is fitted at the cylinder end and a hook at the piston rod end. Check the hook, matching ball and pin together, and make sure the hook is closed and locked before use. A double-acting hydraulic connection is required. The 63/35 designation means a 63 mm cylinder bore and a 35 mm piston rod.

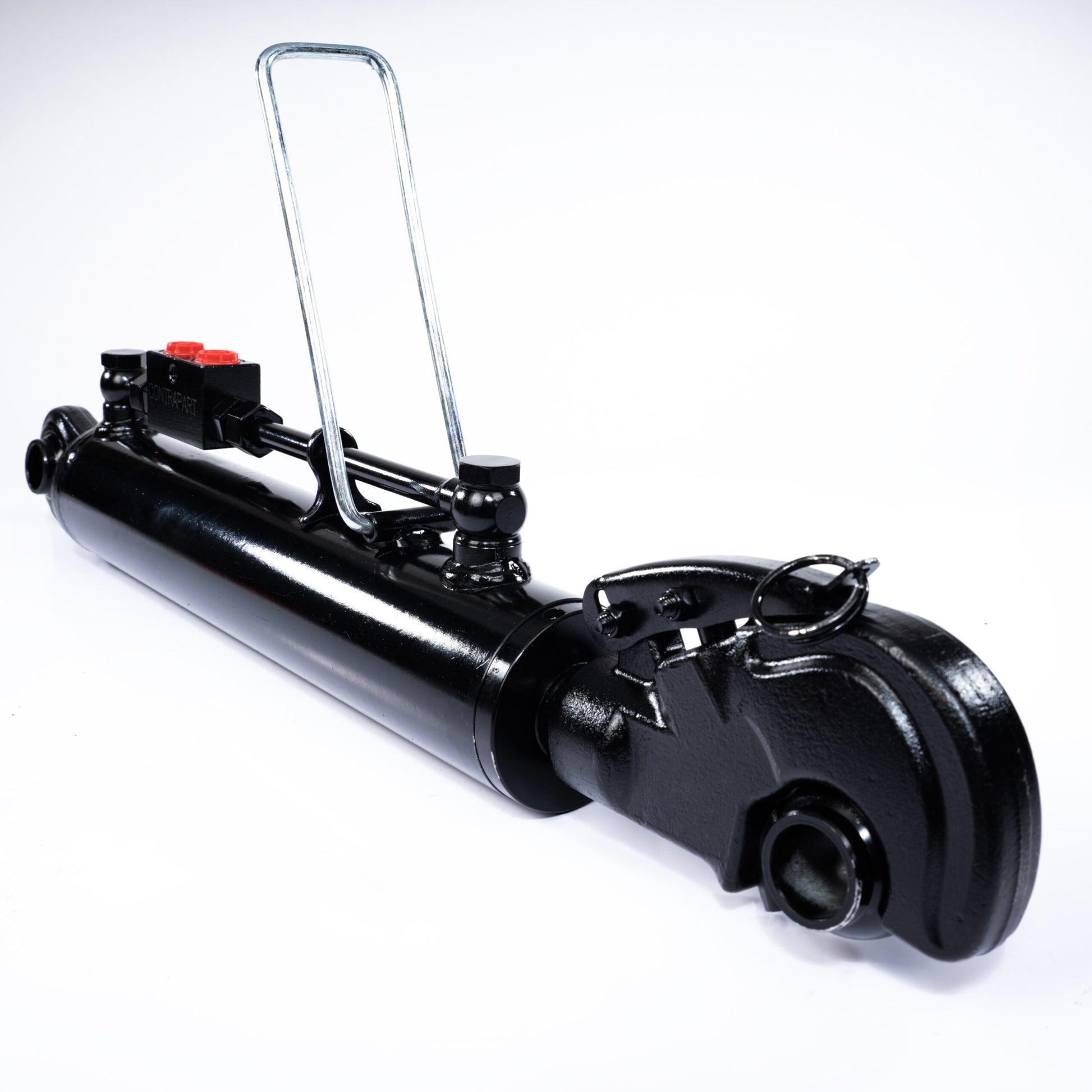

The steel top link has a protective black coating and a rotating piston rod. The integrated hydraulic locking block with check valve helps hold the set length when the hydraulic control is released.

The built-in holder lets you hang up the top link when it is not in use.

Technical specifications

Part numberSPH320054
End-fitting categoryCat 2-2
End fittingsBall joint and hook end
Retracted length¹720 mm
Extended length¹1120 mm
Stroke400 mm
Bore / piston rod63 / 35 mm
Hole diameter at ball jointØ25.4 mm
Hole diameter of ball in hookØ25.4 mm
Width at cylinder end51 mm
Width at hook end51 mm
Cylinder portsG3/8″ (2×)
Operating pressure180 bar
Maximum pressure250 bar
Push force5 700 kgf at 180 bar
Pull force3 950 kgf at 180 bar
Indicative tractor power²40–120 hp
Outer diameter of cylinder-end eyeØ75 mm
Weightapprox. 18 kg
Hydraulic controlRequires a double-acting hydraulic remote
HosesDN10 / 3/8″ SAE 100 R1AT; 75 cm
Quick couplersmale 1/2″ poppet quick couplings; dust covers
Banjo bolts3/8″ BSP (2×)

¹ Measure from the centre of the ball joint to the centre of the ball seated in the hook. The hole diameter is not necessarily the nominal pin diameter, and 51 mm is not the hook opening.

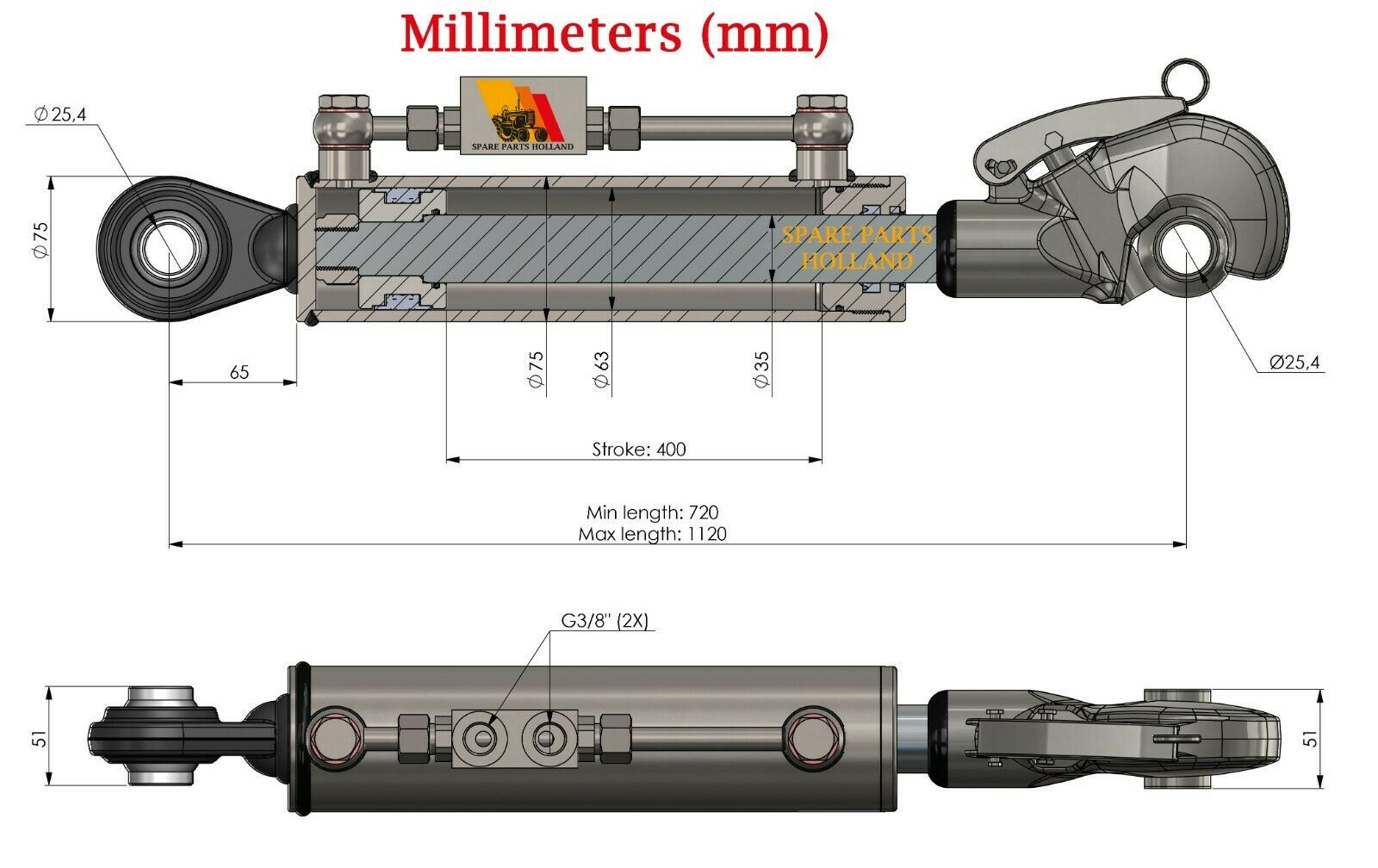

View the metric technical drawing

² Tractor power is a guide only. Check the end fittings, length range and intended application.

Checks before installation

  1. Compare the required retracted and extended lengths with 720–1120 mm.
  2. Check both mounting pins, hole diameters, joint widths and available clearance.
  3. Check double-acting control and tractor quick couplings. G3/8″ is the cylinder port size, not the tractor quick-coupling specification.
  4. Route the hoses without kinks, tension or contact with moving parts.

Compare other length ranges

600–880 mm · 620–920 mm · 665–1005 mm.

Cat 2 Hydraulic Top Links with Hook

Frequently asked questions

Does it fit every Cat 2 tractor?

No. Check the length range, both mounting points, available clearance and hydraulic connections.

How do I measure the required top-link length?

Measure from the centre of the ball joint to the centre of the ball seated in the hook. Compare the shortest and longest lengths required with 720–1120 mm. Do not measure to the outside of the hook. The 51 mm dimension is not the hook opening.

Is the 400 mm stroke the same as the overall length?

No. Stroke is the cylinder's travel. The retracted length is 720 mm and the extended length 1120 mm, measured between the indicated mounting points.

Need help choosing?

Send your tractor model, photos of both mounting points and the dimensions of your current top link via WhatsApp. Tell us which implement you use. The product code is already included in the message.

Ask for advice on WhatsApp
