Hydraulic Top Link Cat 2-2 (18 7/8” - 25 3/16”) with Hook, Locking Block and 2 Hoses - SPH320051

Hydraulic Top Link Cat 2-2 (18 7/8” - 25 3/16”) with Hook, Locking Block and 2 Hoses - SPH320051

Regular price €219,00
Regular price Sale price €219,00
Sale Sold out
Taxes included.

SKU:

SKU: SPH320051

EAN: 8720956301519

  • Complete installation kit


Delivery and service

Ordered before 15:00 CET, delivered within 3 days

Shipping via UPS Worldwide Saver or Fedex Priority

1000+ customers give us a 4.7 review

View full details

Transform your tractor's capabilities with the Spare Parts Holland Hydraulic Top Link Cat 2-2. This professional-grade hydraulic top link is engineered for precision control and reliable performance in demanding agricultural applications. Featuring an integrated locking block system, this top link maintains consistent positioning even under heavy loads.

Intelligent and Strong: Premium hydraulic top link with integrated locking block technology, maintains adjusted position consistently. Features sturdy steel construction with black protective finish. Hydraulic operating pressure of 2610 PSI with 12588 Lbs push force and 8708 Lbs thrust force.

Complete Installation Kit: Includes 2x hydraulic hoses with male quick couplers (Blue Flex SAE 100 3/8), protective dust covers, and quick connection fittings. Comprehensive fitting set ensures easy setup and maintenance.

Adjustable Design: Cat 2 top link system with rotatable piston rod for precise implement positioning. Working length ranges from 18-7/8 inches minimum to 25-3/16 inches maximum. Features 6-5/16 inch stroke for optimal adjustment range.

Advanced Locking Mechanism: Integrated check valve system securely locks cylinder position, requires active hydraulic pressure for adjustments. Ensures stable implementation positioning during operation and transport.

Versatile Compatibility: Designed for tractor hydraulic systems with double-acting control valves. Built-in holder to hold the unit when it is unused. Fully painted with anti-corrosion finish for lasting durability.



Superior Construction and Performance

Built with high-grade steel and finished in protective black coating, this tractor hydraulic cylinder delivers exceptional durability. The hydraulic control valve system is designed for compatibility with standard tractor hydraulic setups, making it a versatile addition to your agricultural equipment.

Technical Specifications:

  • Model Number: SPH320051

  • Maximum Hydraulic Pressure: 3625 PSI

  • Operating hydraulic pressure: 2610 PSI

  • Push force 12588 and 8708 Lbs pull force at 2610 PSI pressure

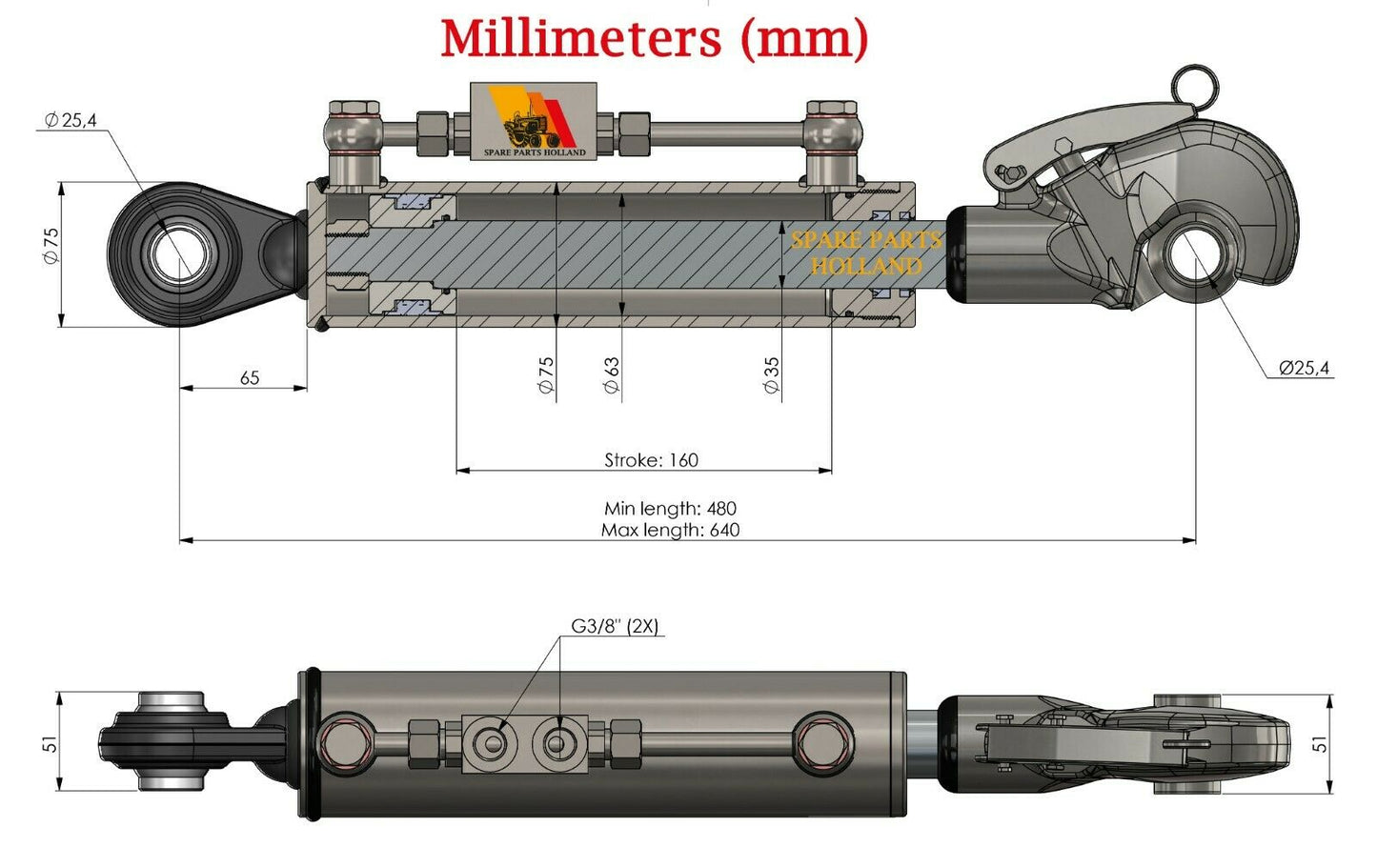

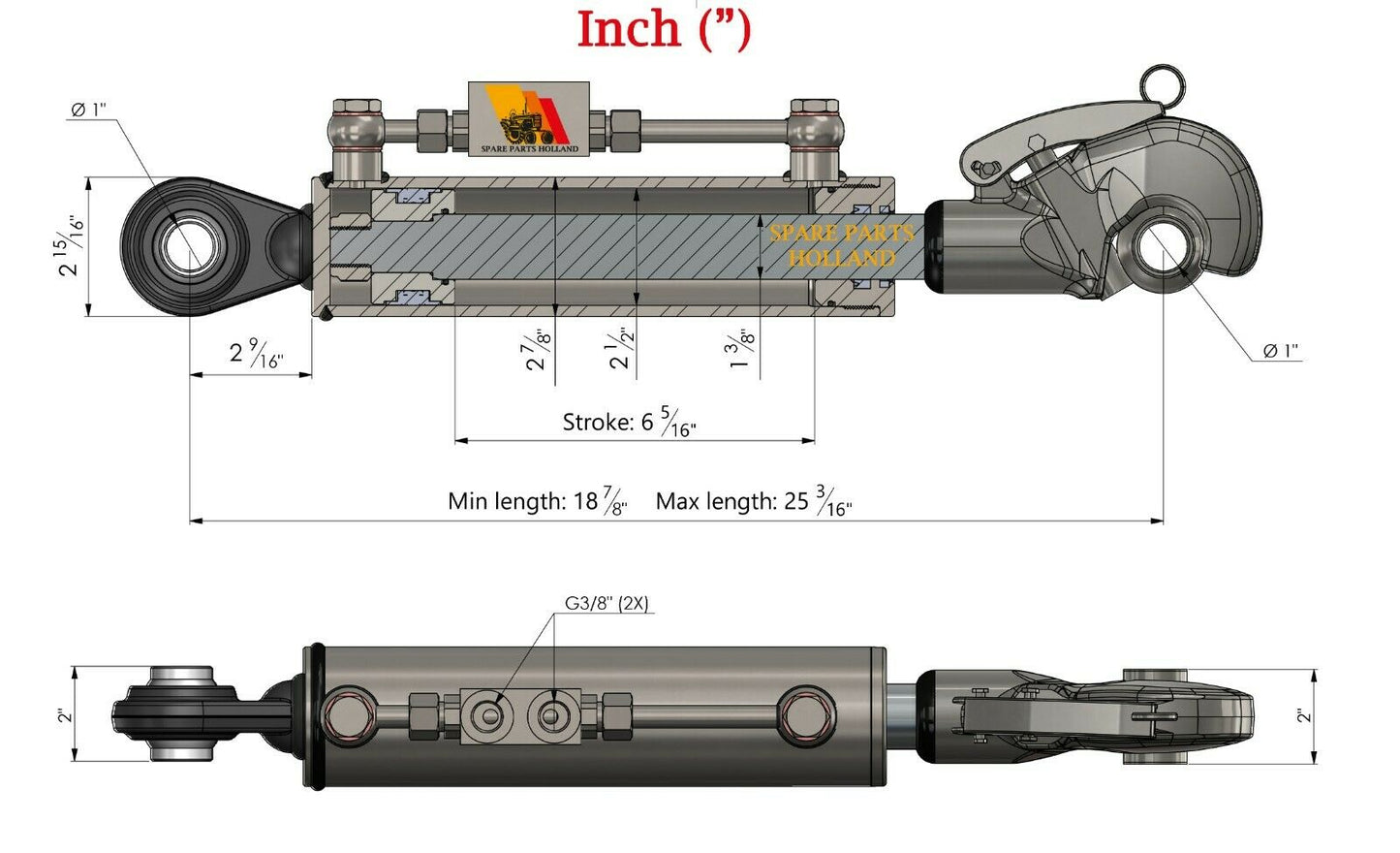

  • Working Length Range: 18-7/8" to 25-3/16"

  • Stroke Length: 6-5/16"

  • Hydraulic Hoses: 3/8" Blue Flex SAE 100 R2AT

  • Hose Length: 29.5 inches

  • Quick Coupler Type: Connection 12-L bulkhead size 3

  • SKU: SPH320051
  • EAN: 8720956301519
  • Weight: 14.0 kg
  • Product_info:
    • Complete installation kit
